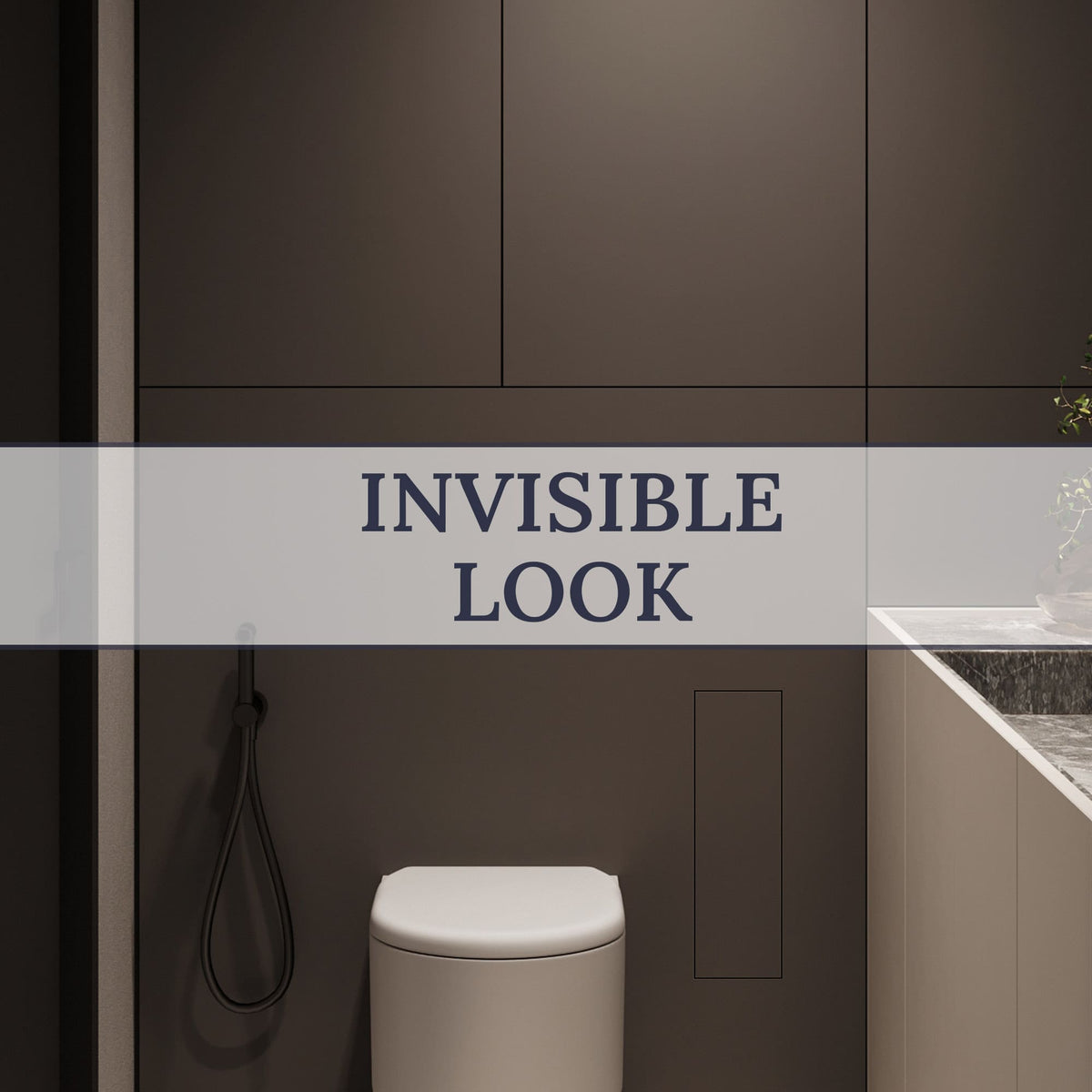

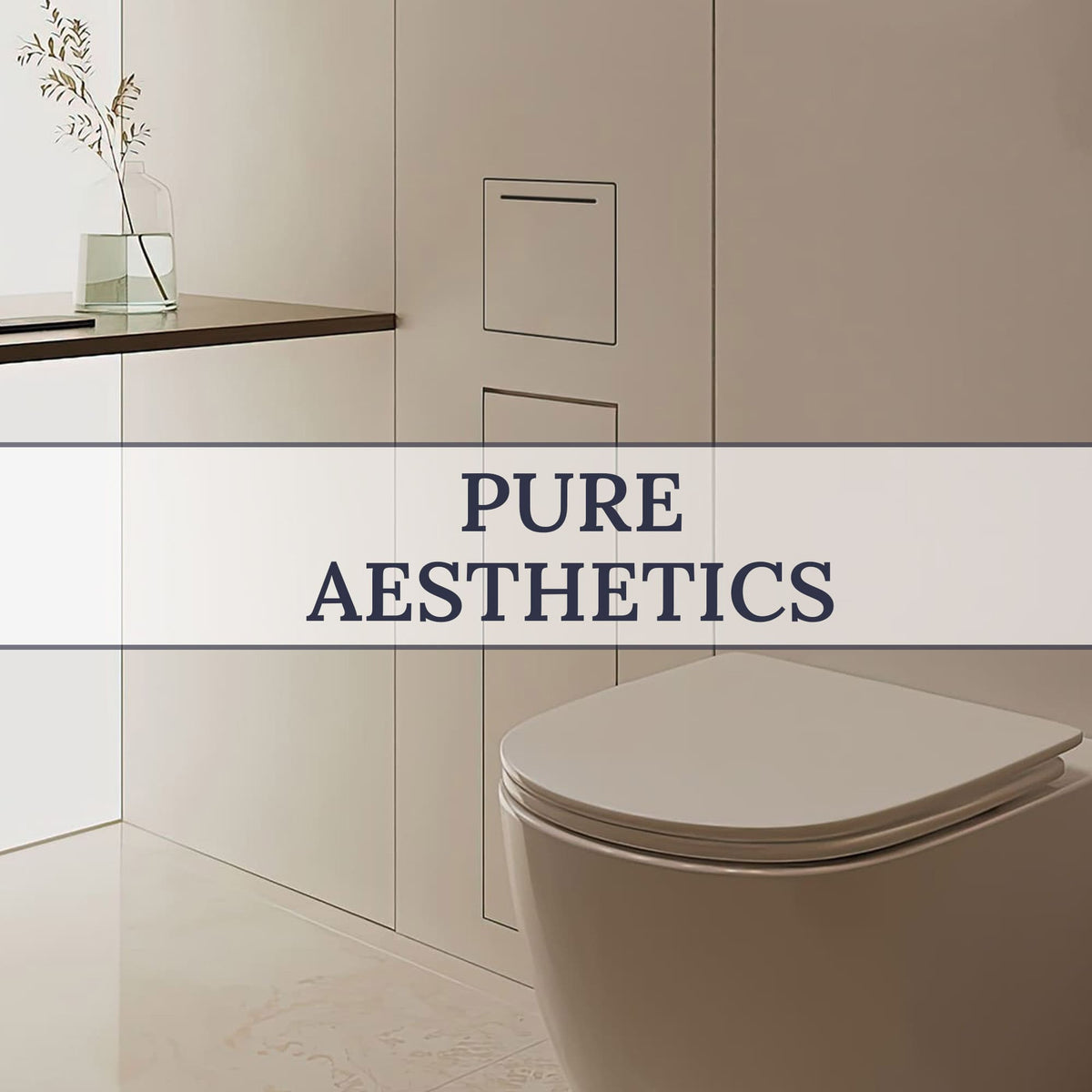

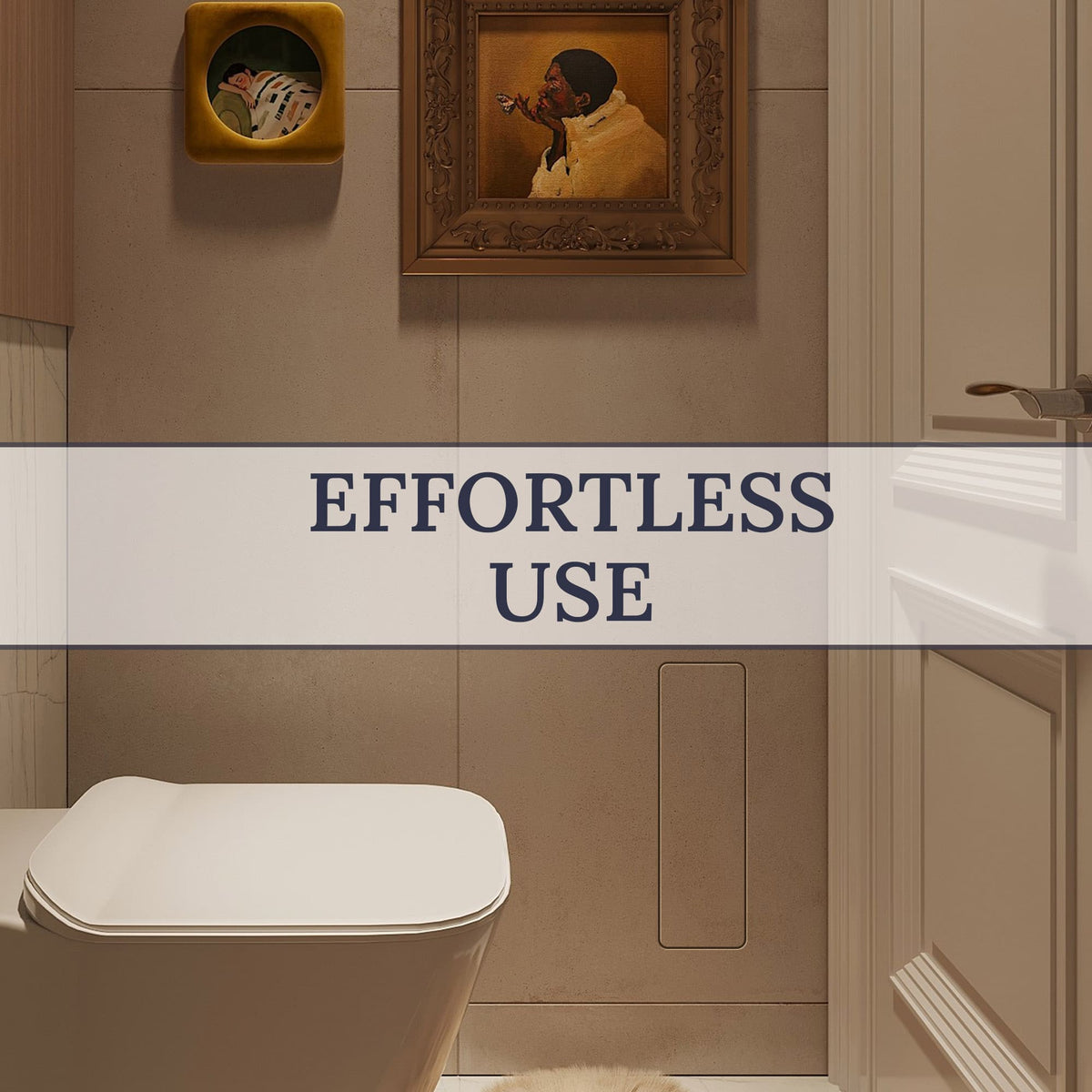

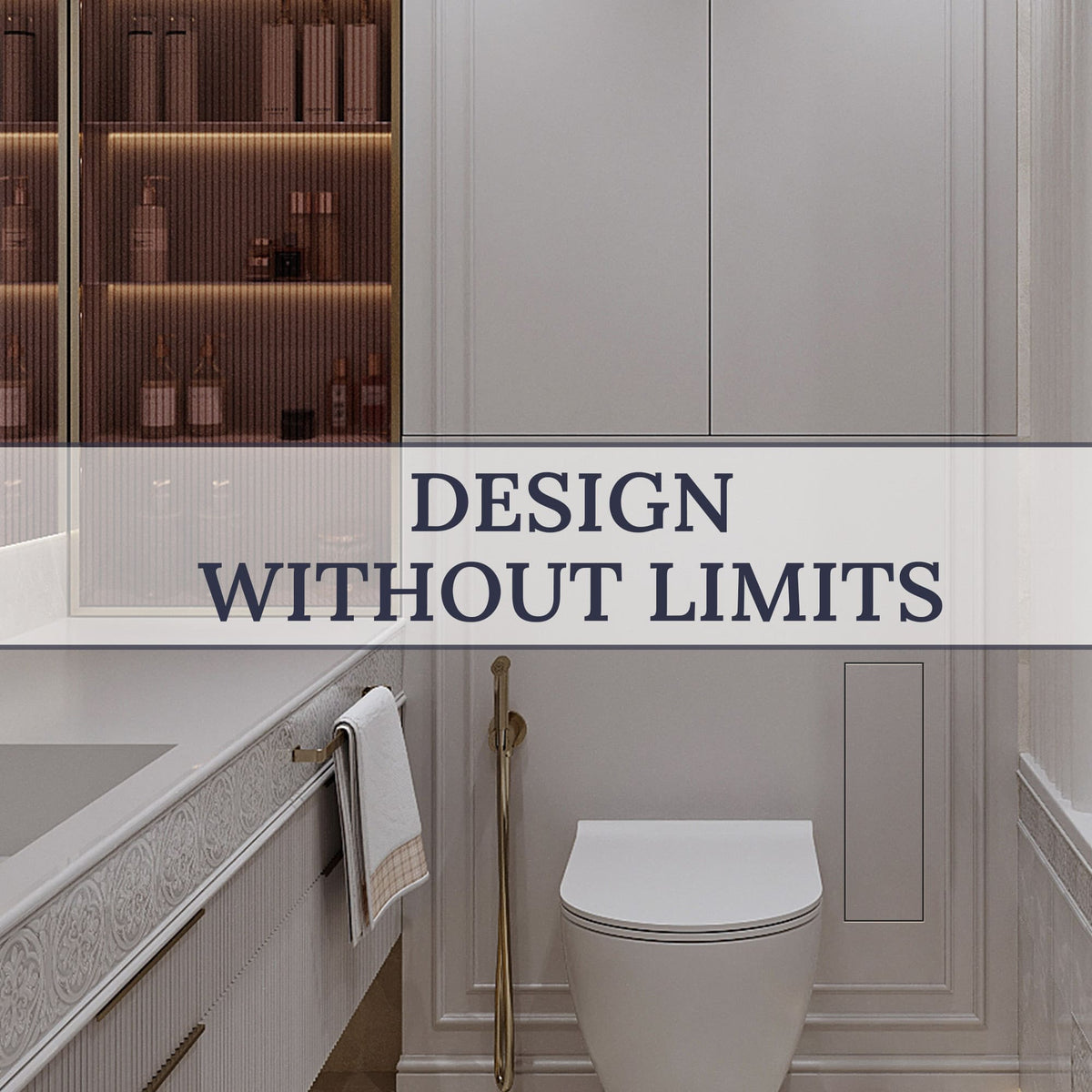

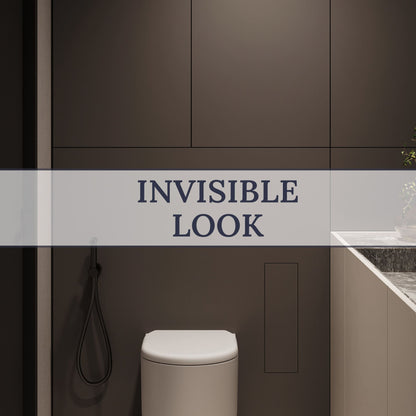

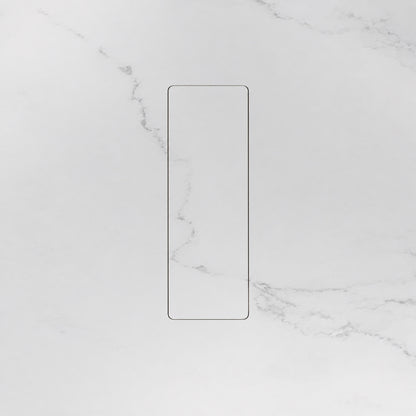

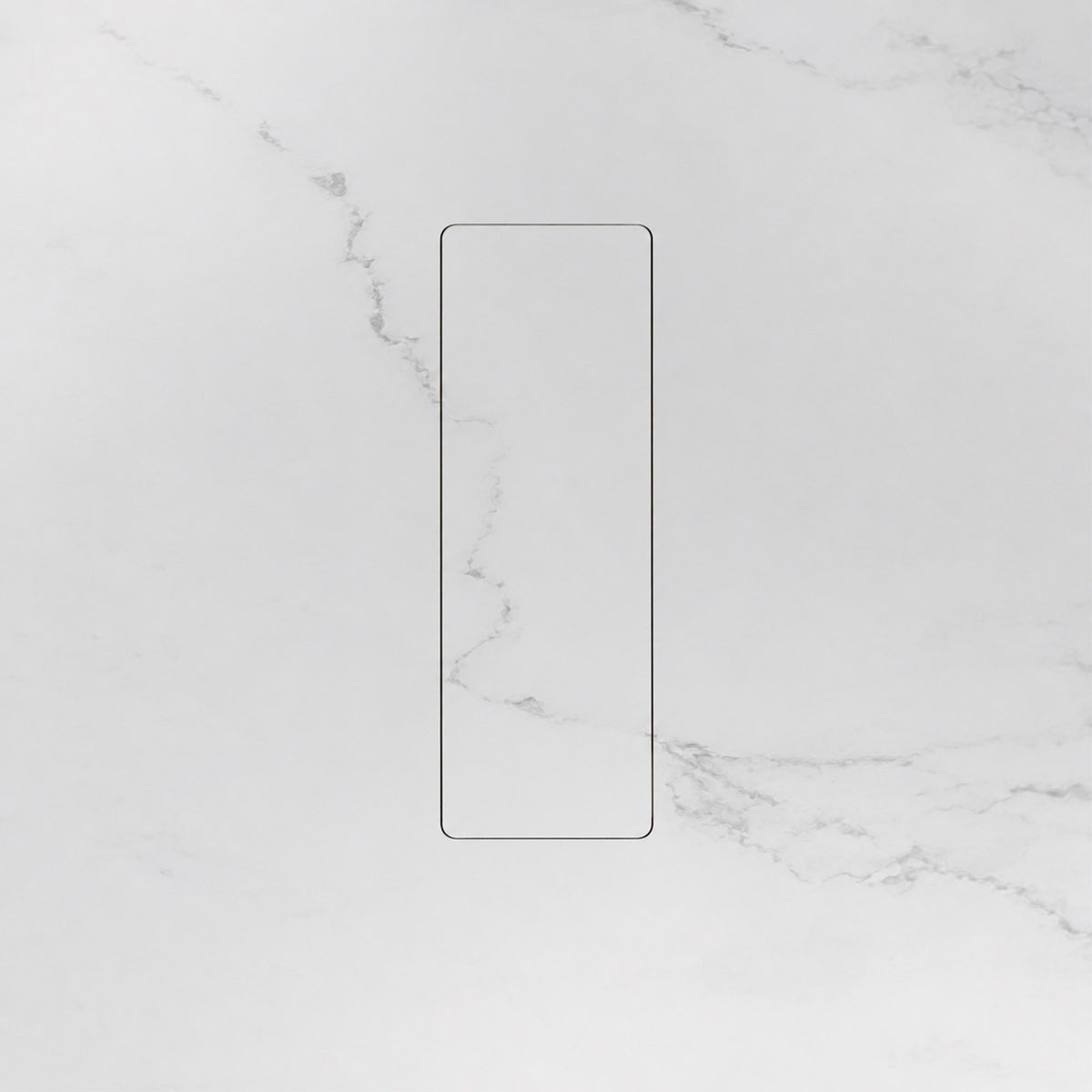

EDPLIT Concealed Toilet Brush Holder is a hidden installation solution for bathrooms and toilets that integrates directly into the wall. When closed, the door remains flush with the tile surface, with no handles or protruding elements.
The Push-to-open mechanism provides convenient access to the toilet brush. The door smoothly slides behind the tile along the guides, using a hinged mechanism that allows the door to close in this way.

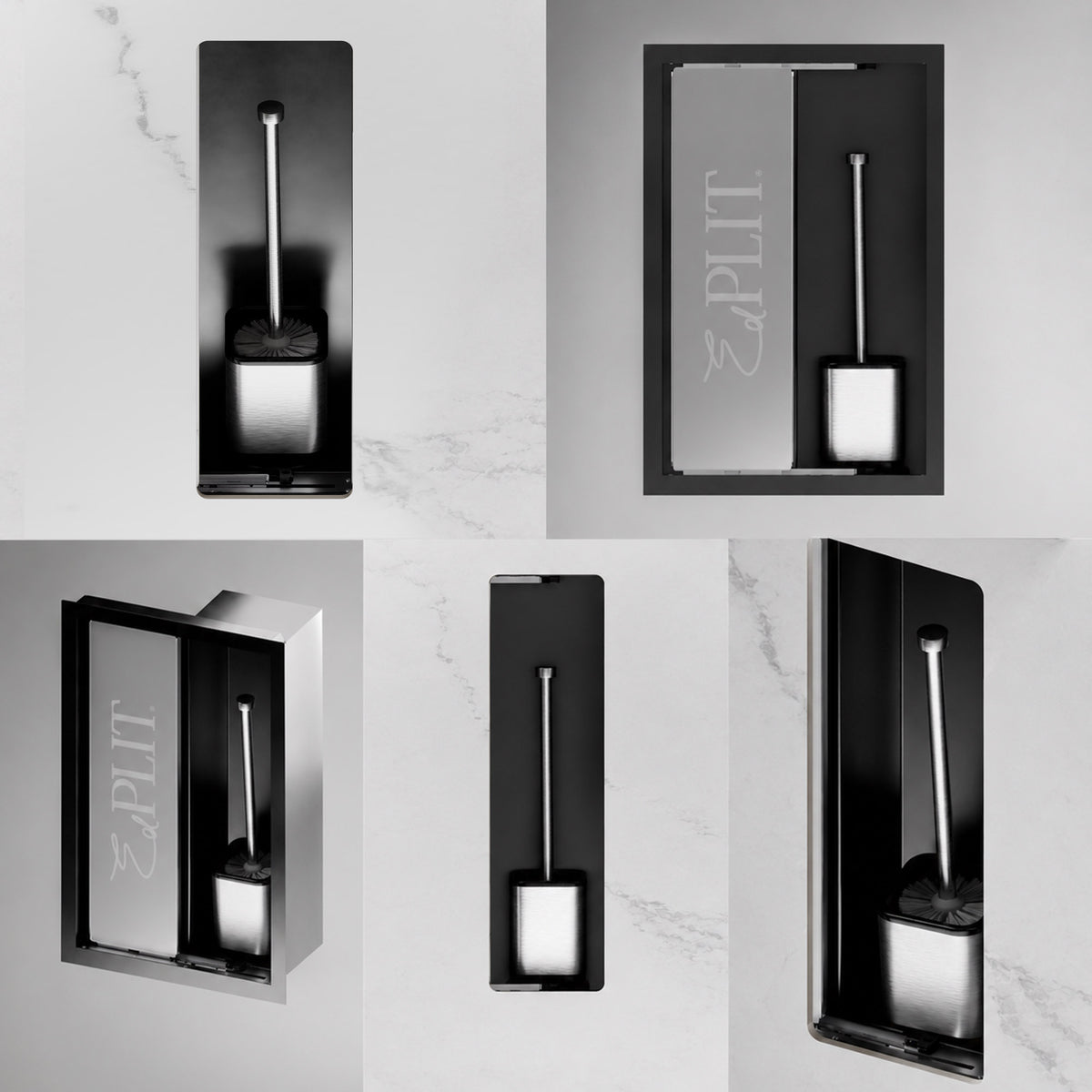

A light push on the tiled door activates the mechanism, allowing the tile to slide to the left along the upper and lower guides and retract behind the adjacent tile. This opens direct access to the toilet brush niche. After use, simply press the edge of the sliding tile to move it back along the guides until it returns to its original position and closes the niche, restoring the continuous tiled surface.
The recessed toilet brush holder features a removable niche construction that provides access to the internal mechanism for maintenance, repair, or component replacement without removing the surrounding tile.
Main Specifications

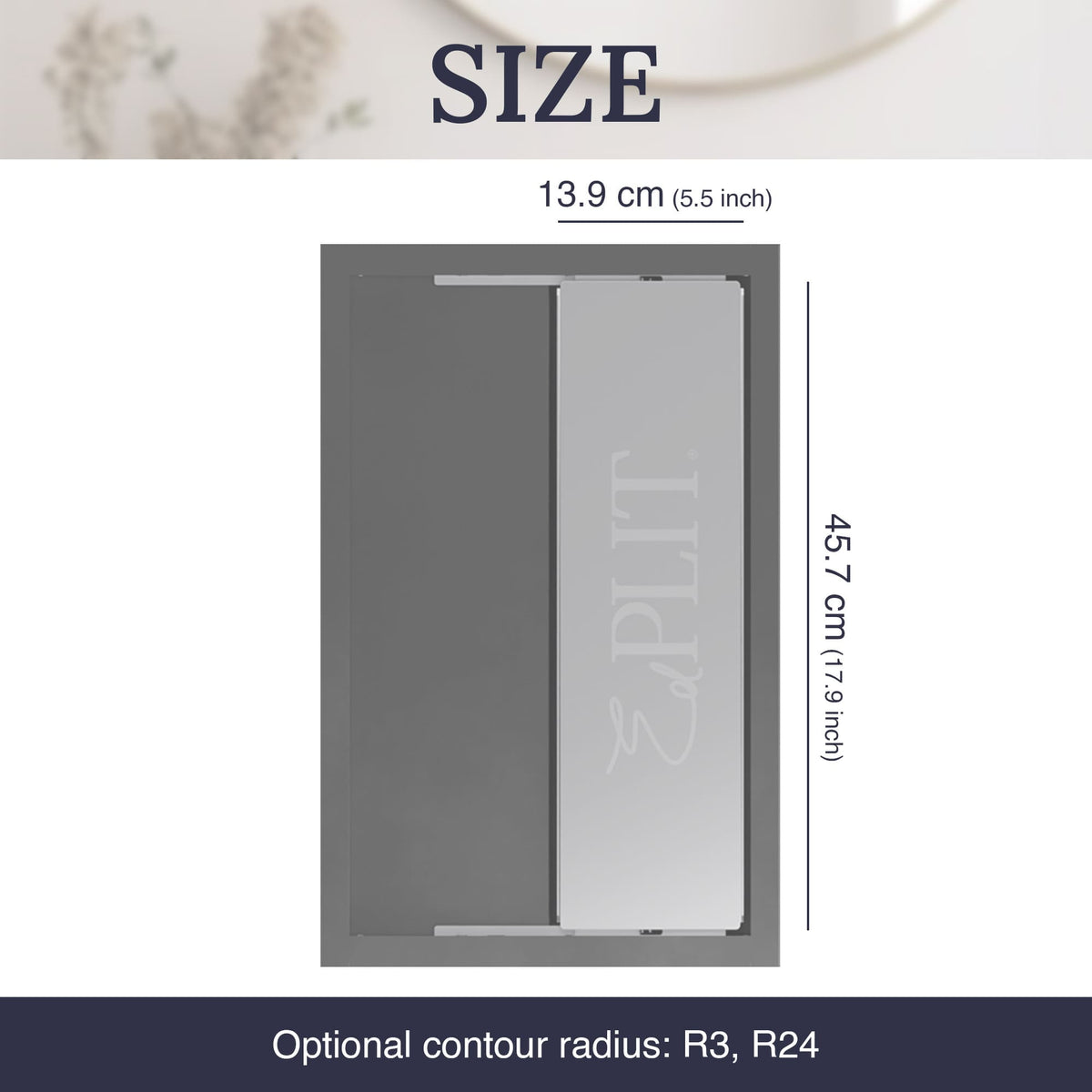

- Tile size for the door: 139 × 457 mm
- Niche depth: 150 mm
- Material: plastic and stainless steel
- Minimum wall depth: 152 mm
- Tile thickness: 3–11 mm
- Opening system: Push-to-open
- Maximum toilet brush size: Ø110 × 410 mm

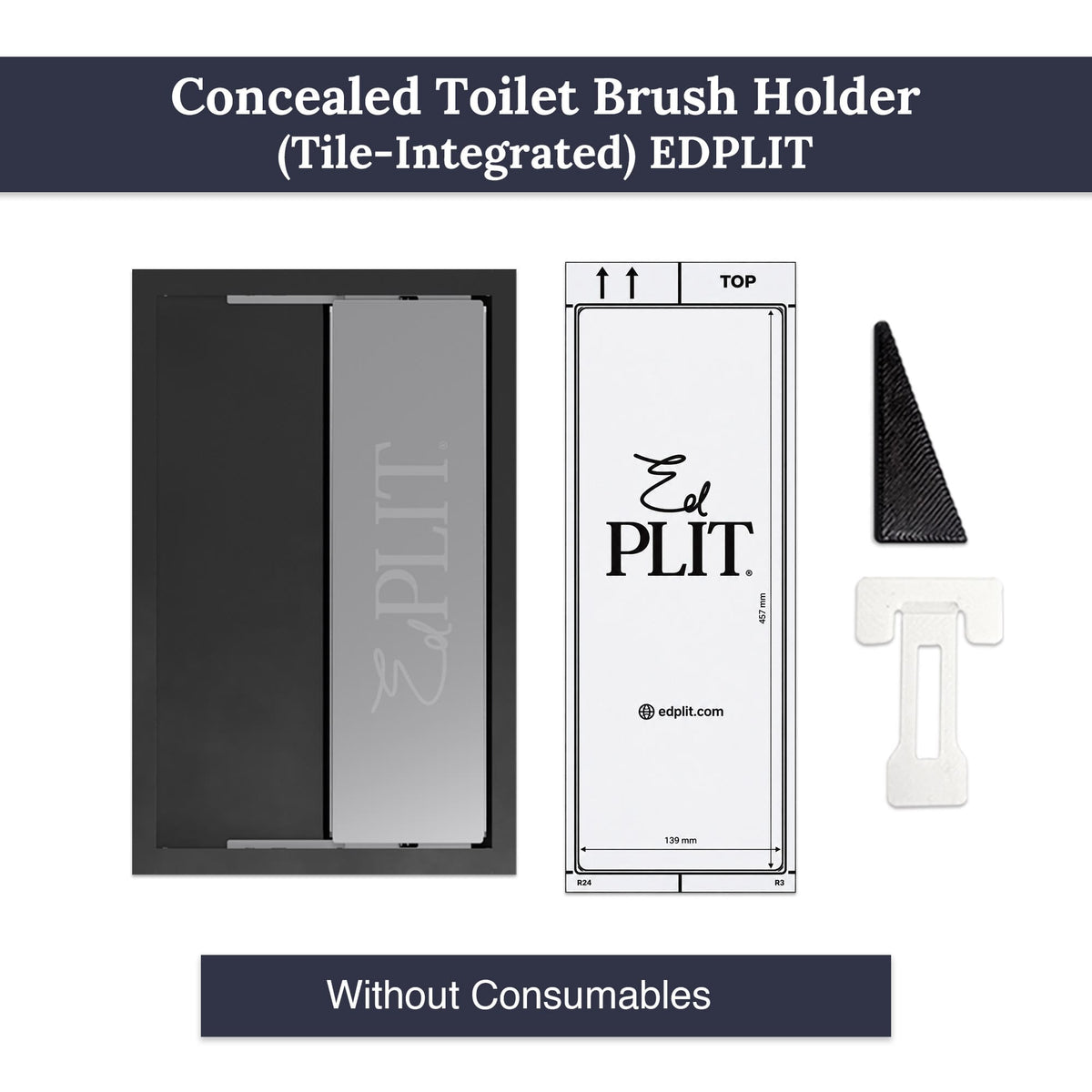

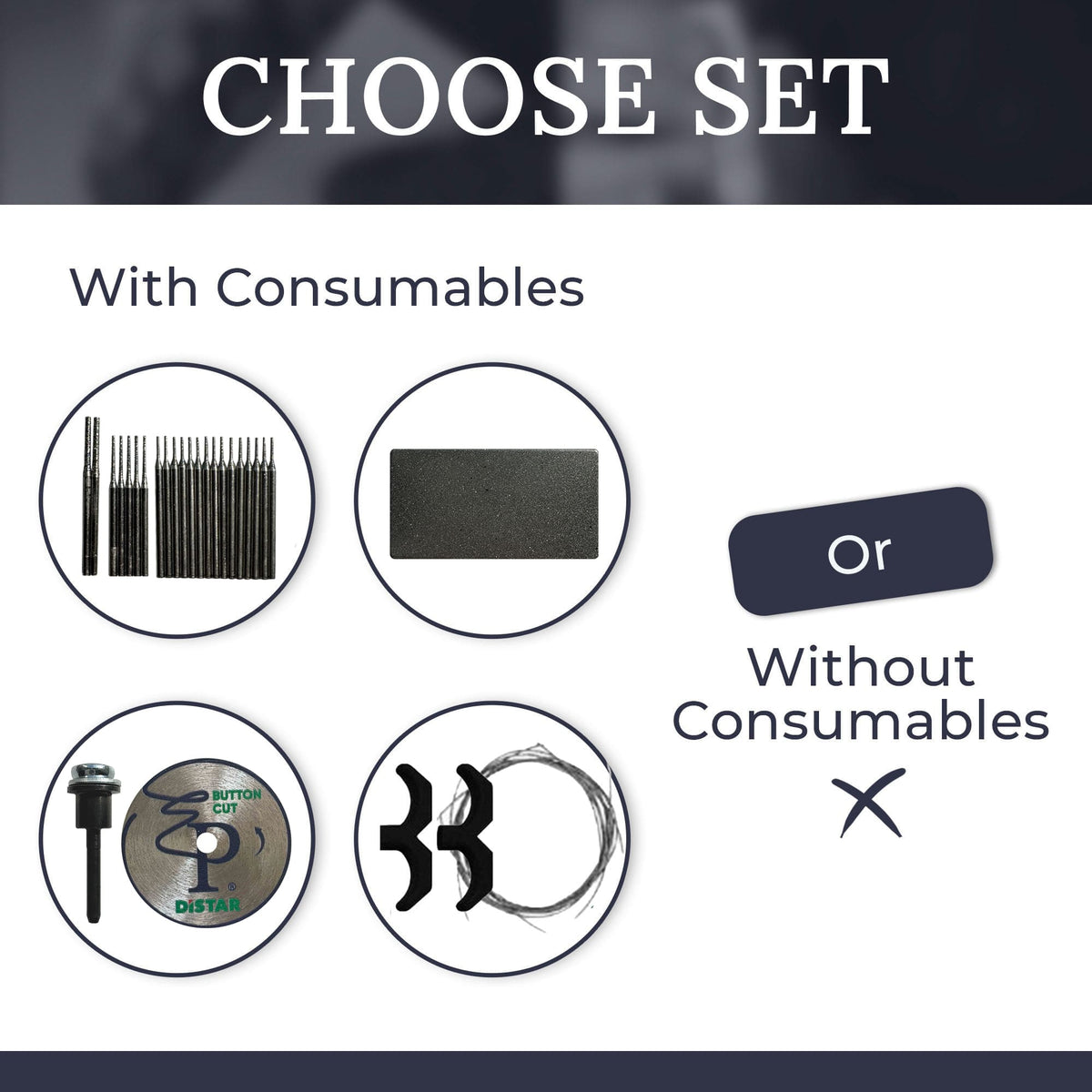

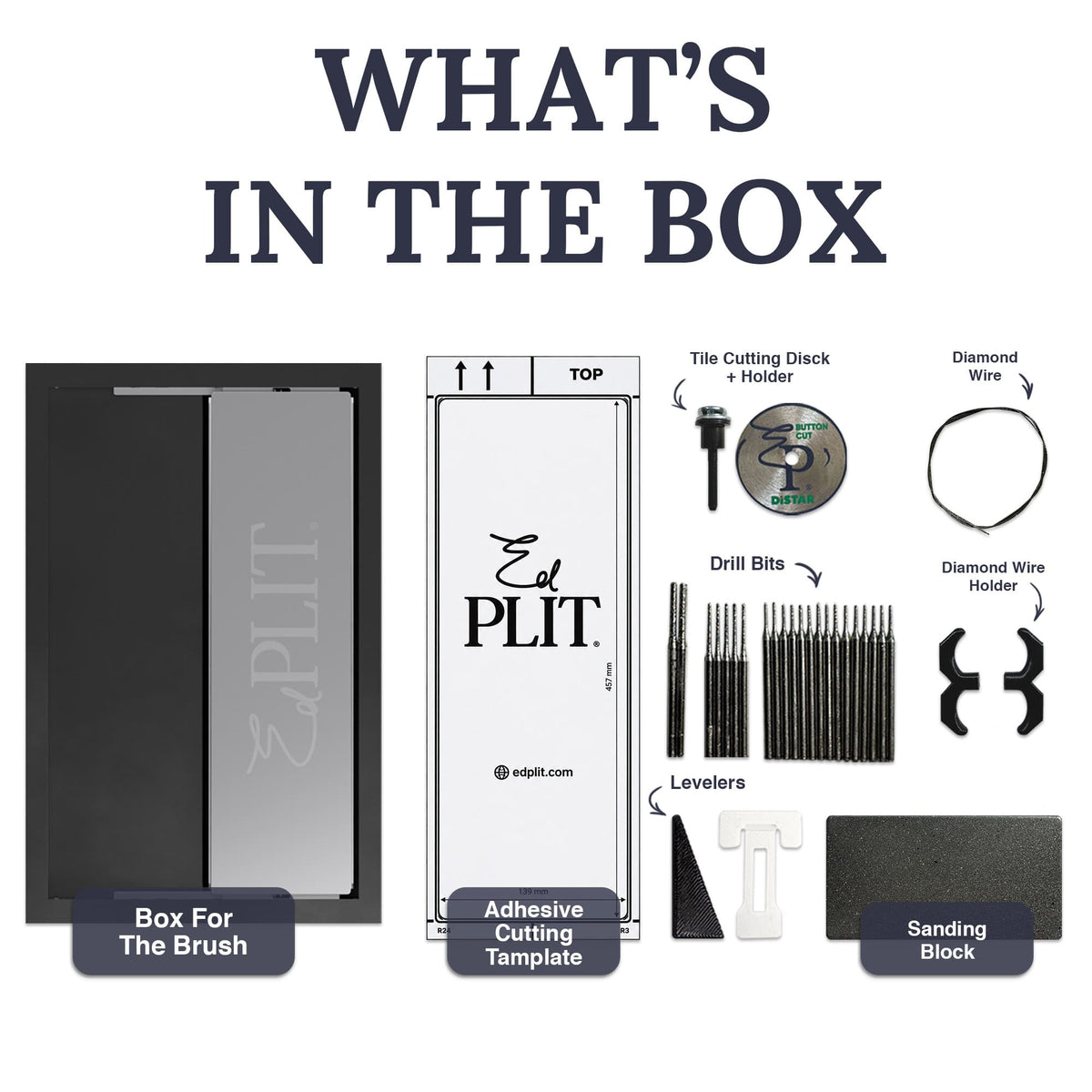

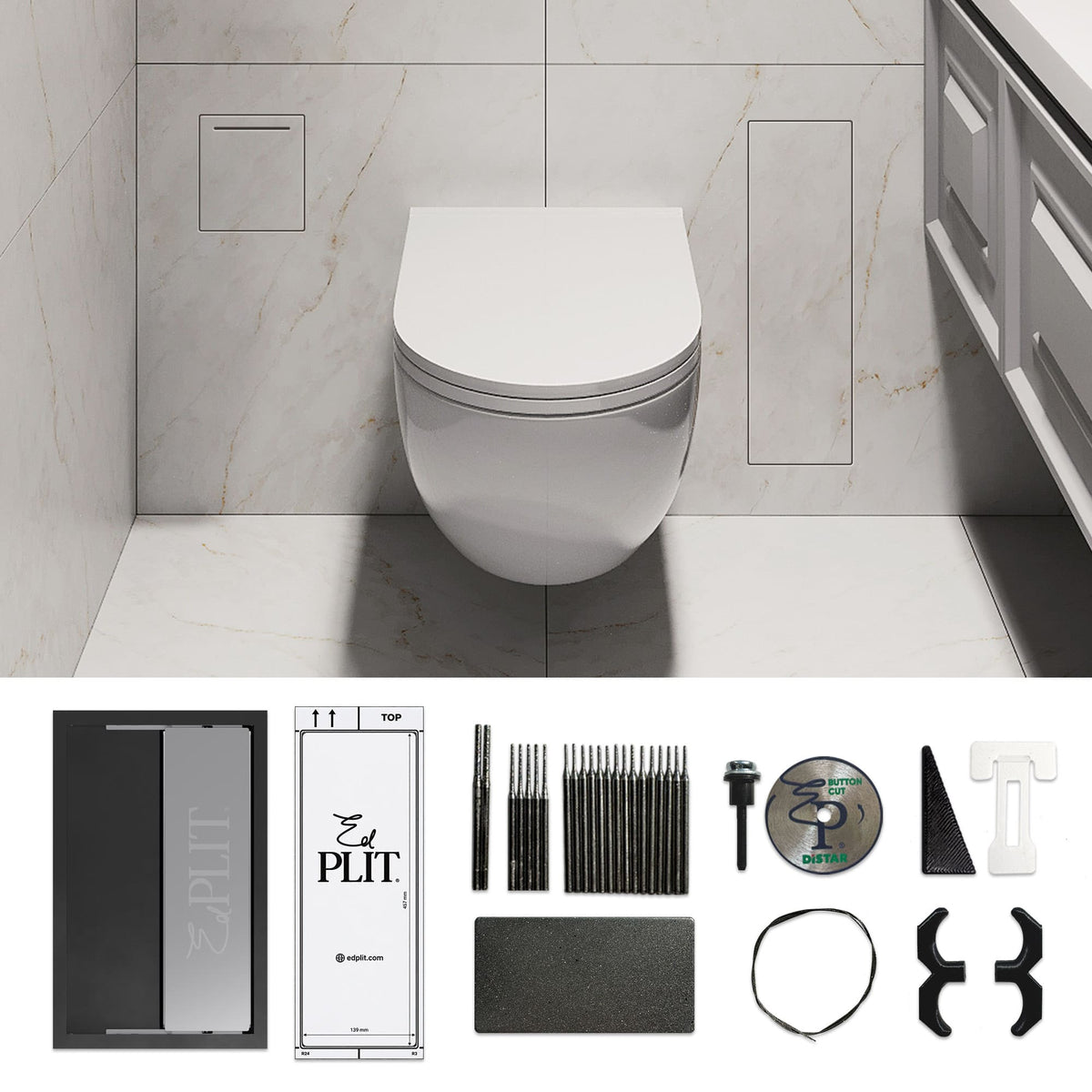

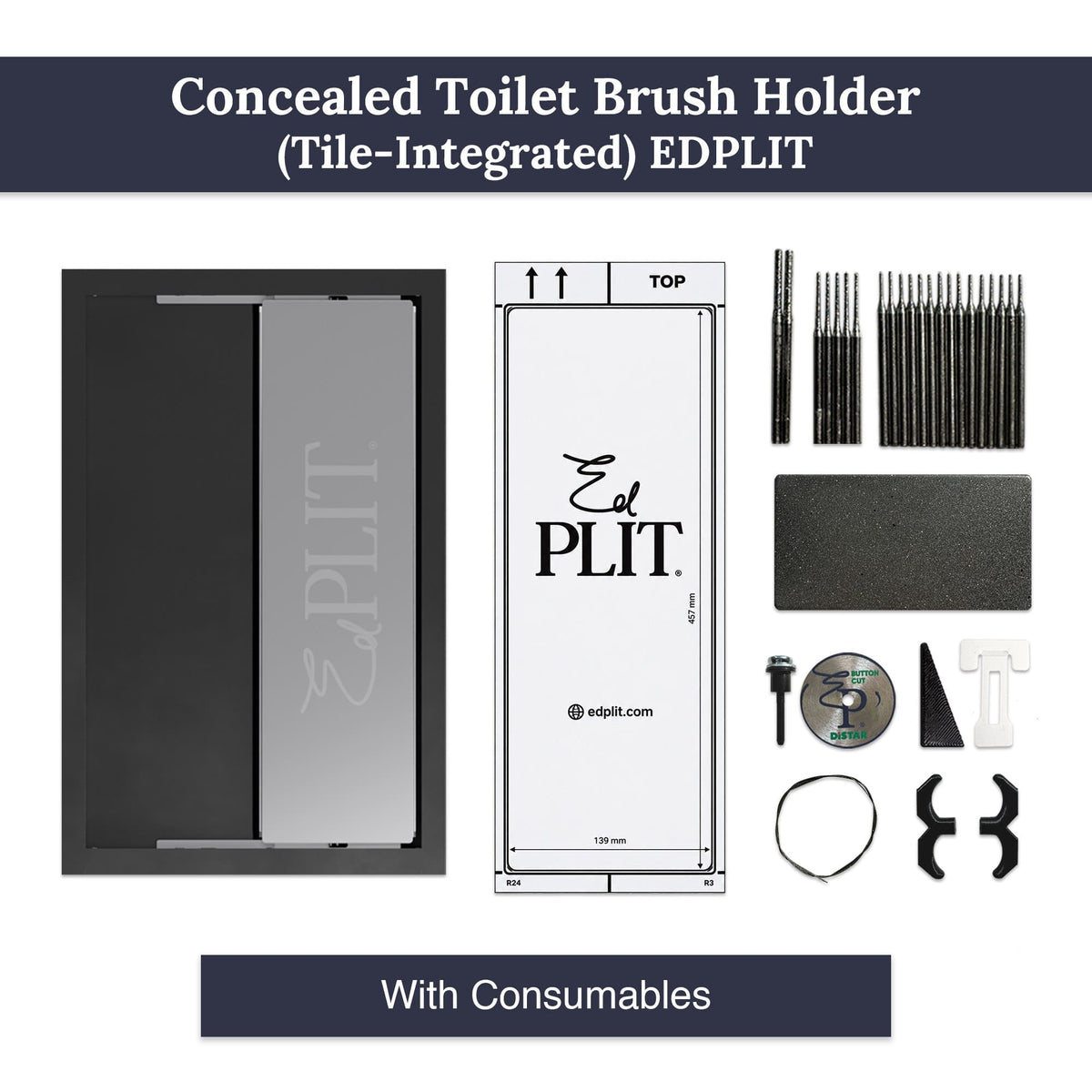

- Configuration: with consumables / without consumables
- Toilet brush is not included and is sold separately.
Maintenance Without Removing the Tile
The removable construction of the built in toilet brush holder provides access to the internal mechanism without damaging the wall or tile finish. This allows maintenance, repairs, or component replacement to be carried out without dismantling the entire installation.
Choosing a Toilet Brush
The hidden toilet brush holder accommodates toilet brushes with maximum dimensions of:
- Diameter — 110 mm
- Height — 410 mm
The toilet brush can be selected separately according to these dimensions.
Tile Compatibility
- The tileable toilet brush holder is compatible with tile and other wall coverings from 3 to 11 mm thick.
- 12 mm tile is not supported.
- The product must be installed before the tile is installed.
Wall Requirements
- The concealed toilet brush holder requires a minimum wall construction depth of 152 mm.
- The niche body occupies 150 mm, providing the necessary installation clearance.
Installation
The toilet brush holder is installed into a prepared niche inside the wall. After the body is secured, the wall is finished with tile. The Push-to-open mechanism and the movement of the door along the guides should then be checked.

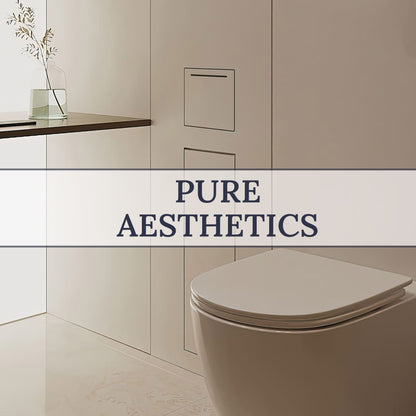

The finished door is designed to integrate with the surrounding tile surface, creating a flush and visually discreet installation.
Important: Before installation, check the wall depth, niche dimensions, and thickness of the tile or other finishing material.
Product Type
The EDPLIT tile ready toilet brush holder is designed for concealed, tile-integrated installation. Its stainless steel components and hidden construction make it suitable for modern bathrooms where the toilet brush needs to remain accessible while visually integrated into the wall.
Please note! Available for purchase by pre-order only. Estimated production time is 28 working days.
