Hidden Exhaust Fan Mounting System Edplit - Without Duct Fans 100/125/150 mm

$218.98 USD

Sale Sold out

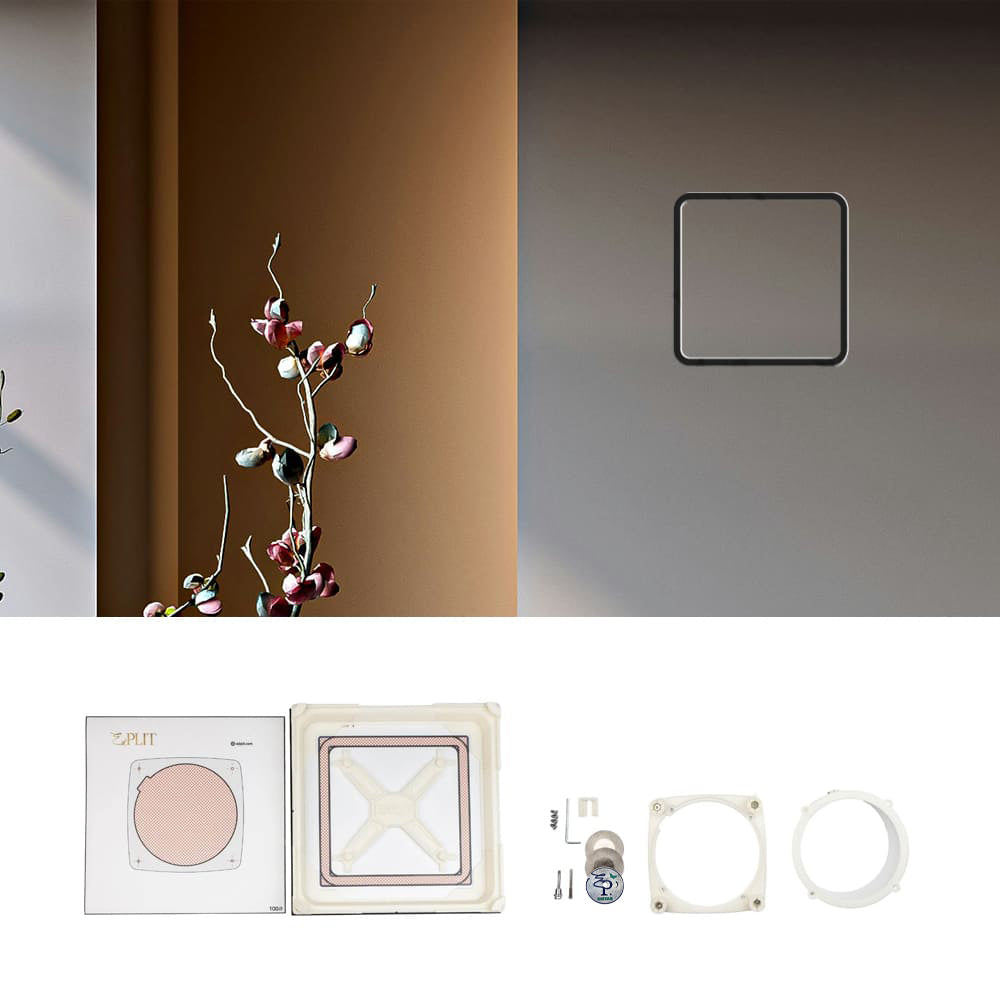

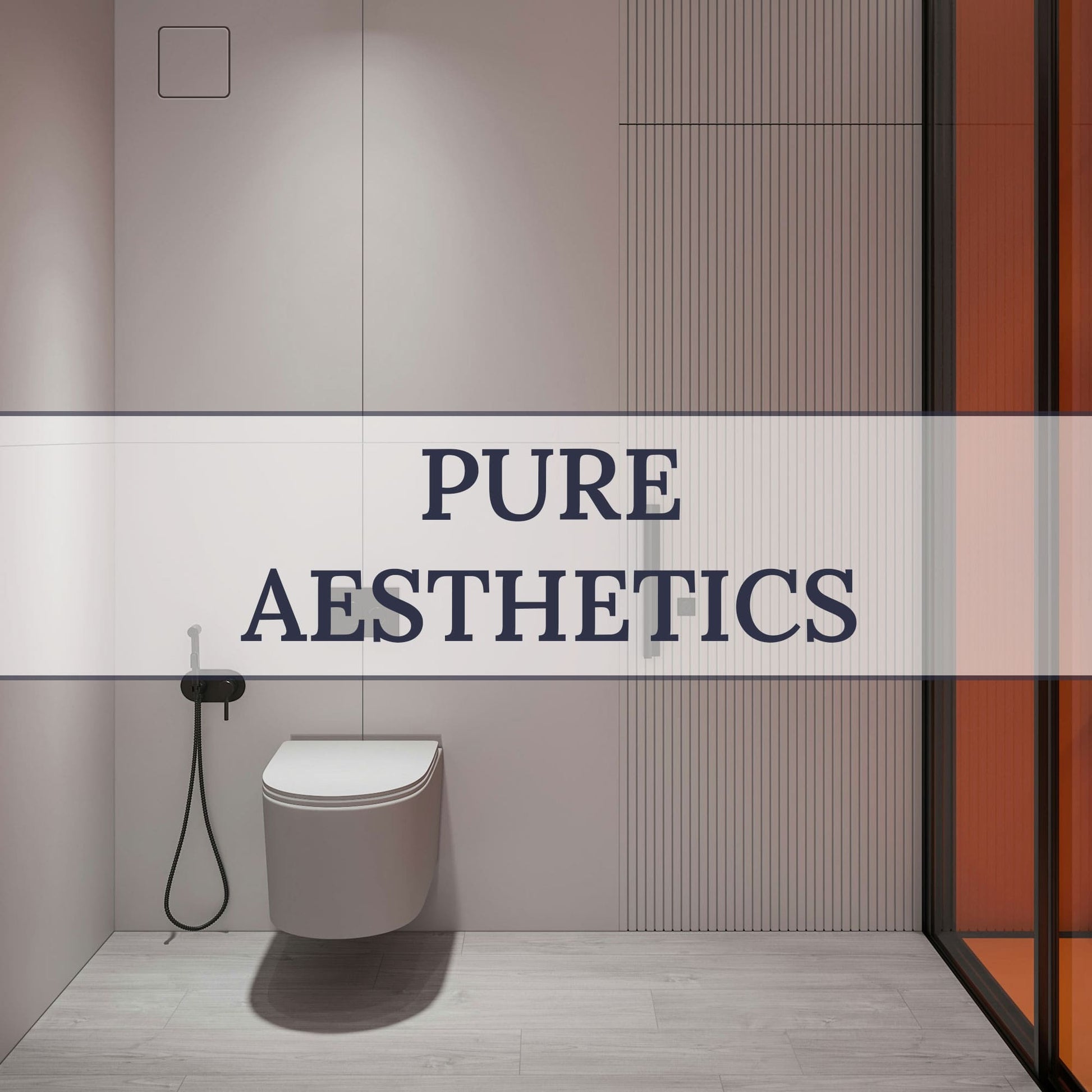

This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space.

A modular installation system that enables concealed mounting of fans with diameters of 100 mm, 125 mm, or 150 mm. It allows full tiling, leaving only a subtle airflow gap, while ensuring access for maintenance if needed.

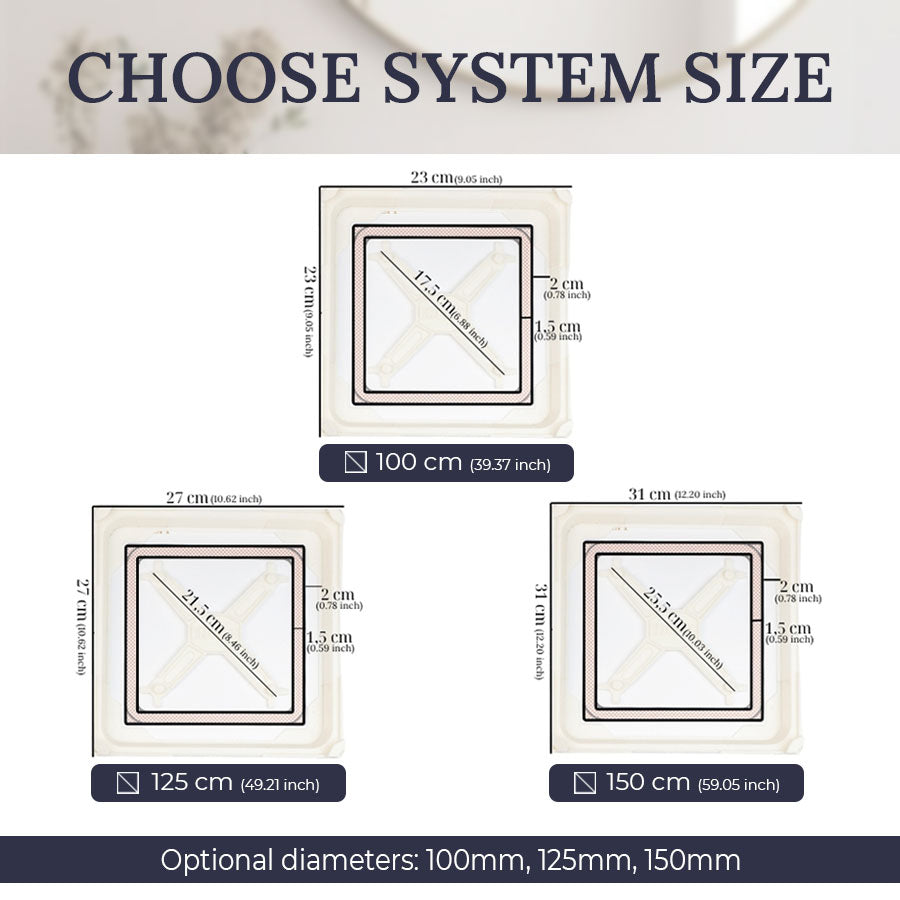

Available Sizes:
100 mm — ideal for guest toilets or compact powder rooms
125 mm — suitable for medium bathrooms or rooms up to 8 m²
150 mm — perfect for larger bathrooms or spaces up to 12 m²

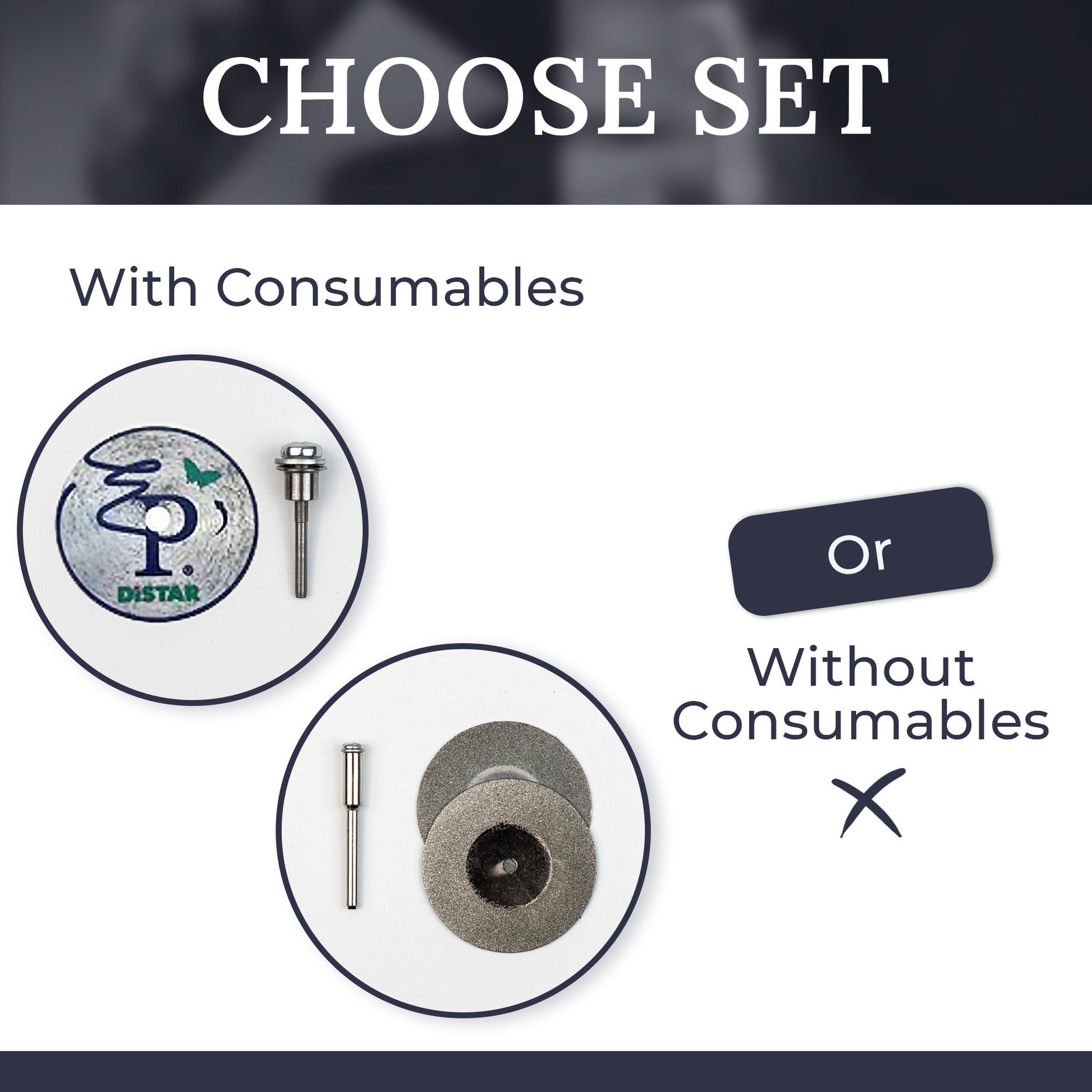

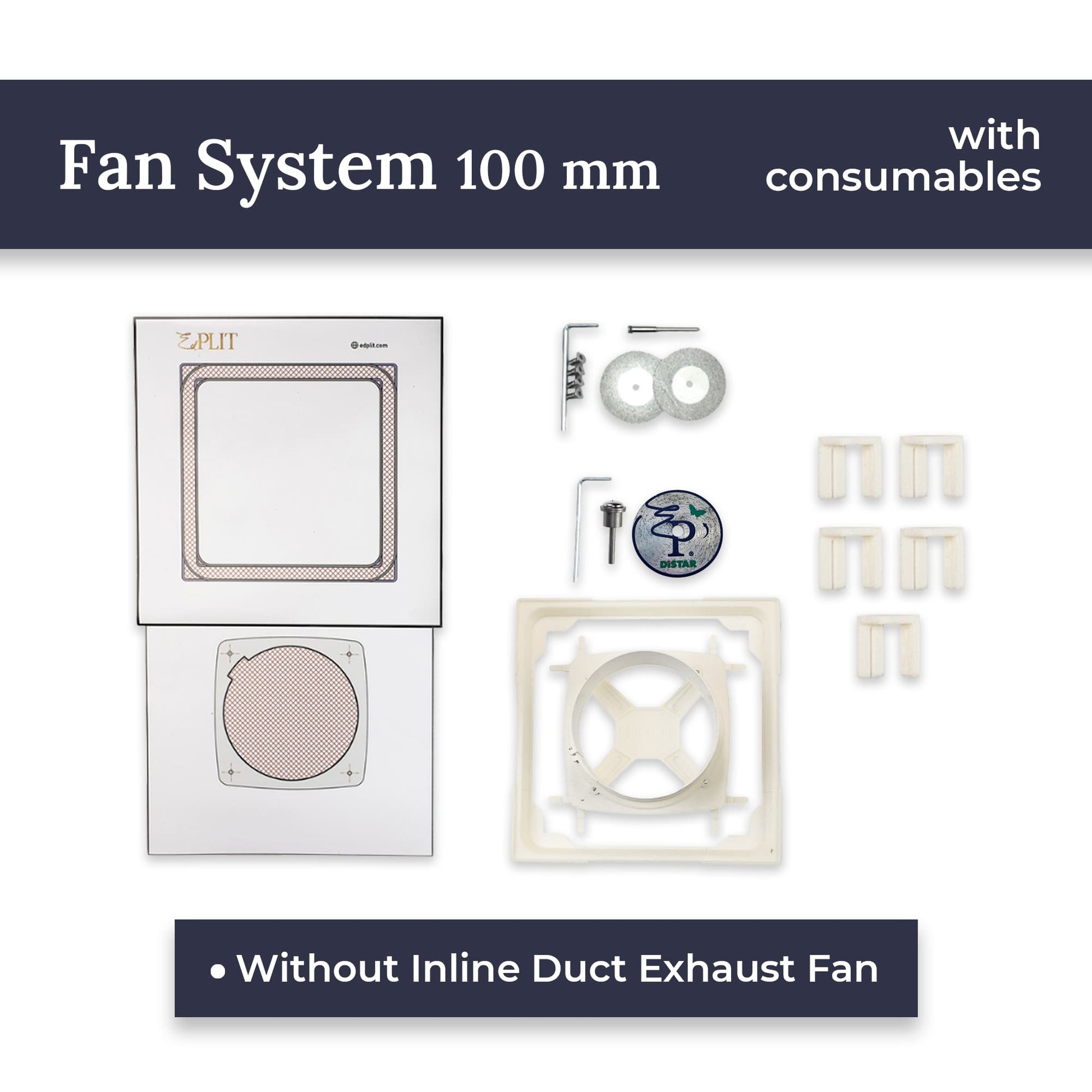

Included in the Full Set (With Consumables):
Concealed mounting elements
Installation hardware
1 diamond cutting disc and 2 diamond sanding discs.

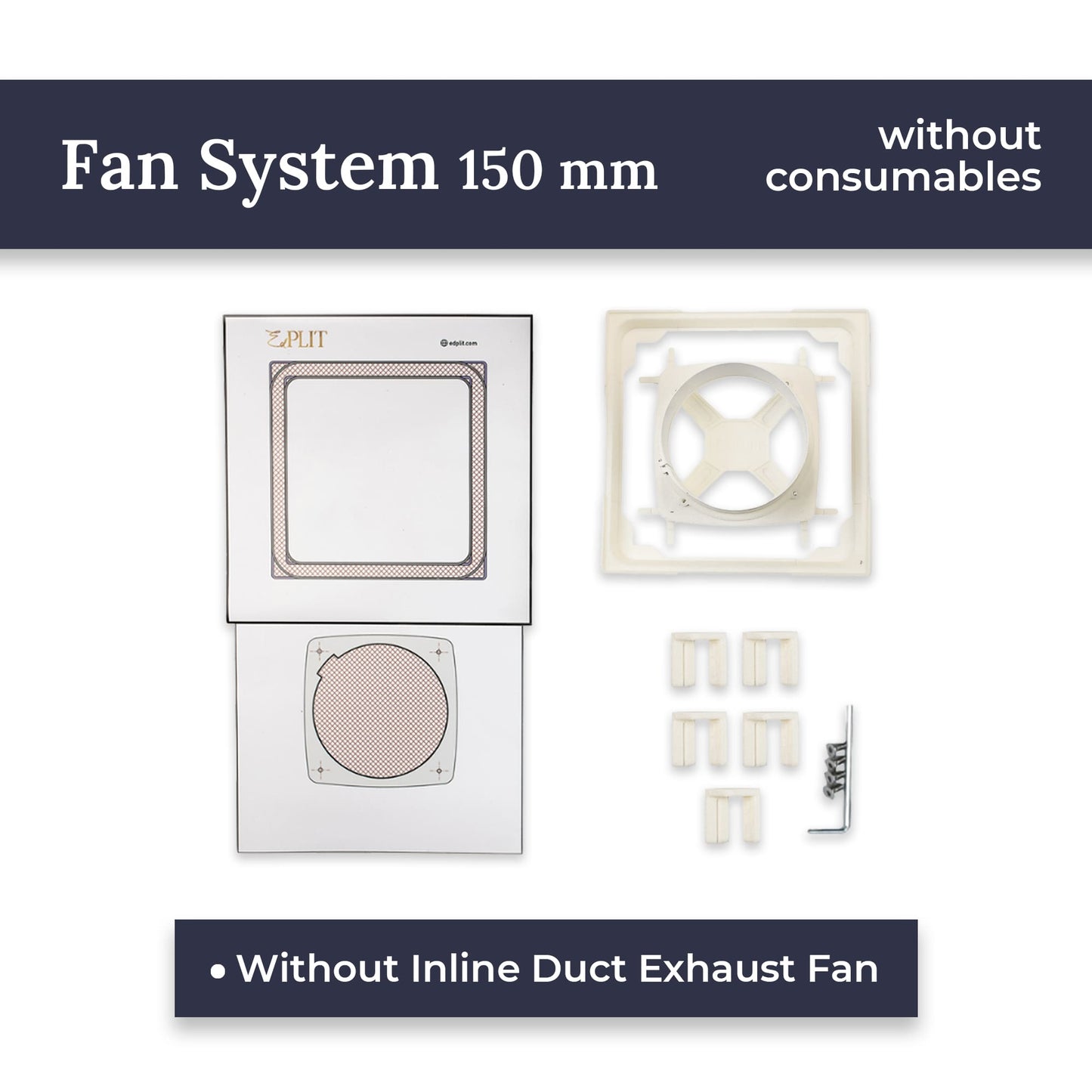

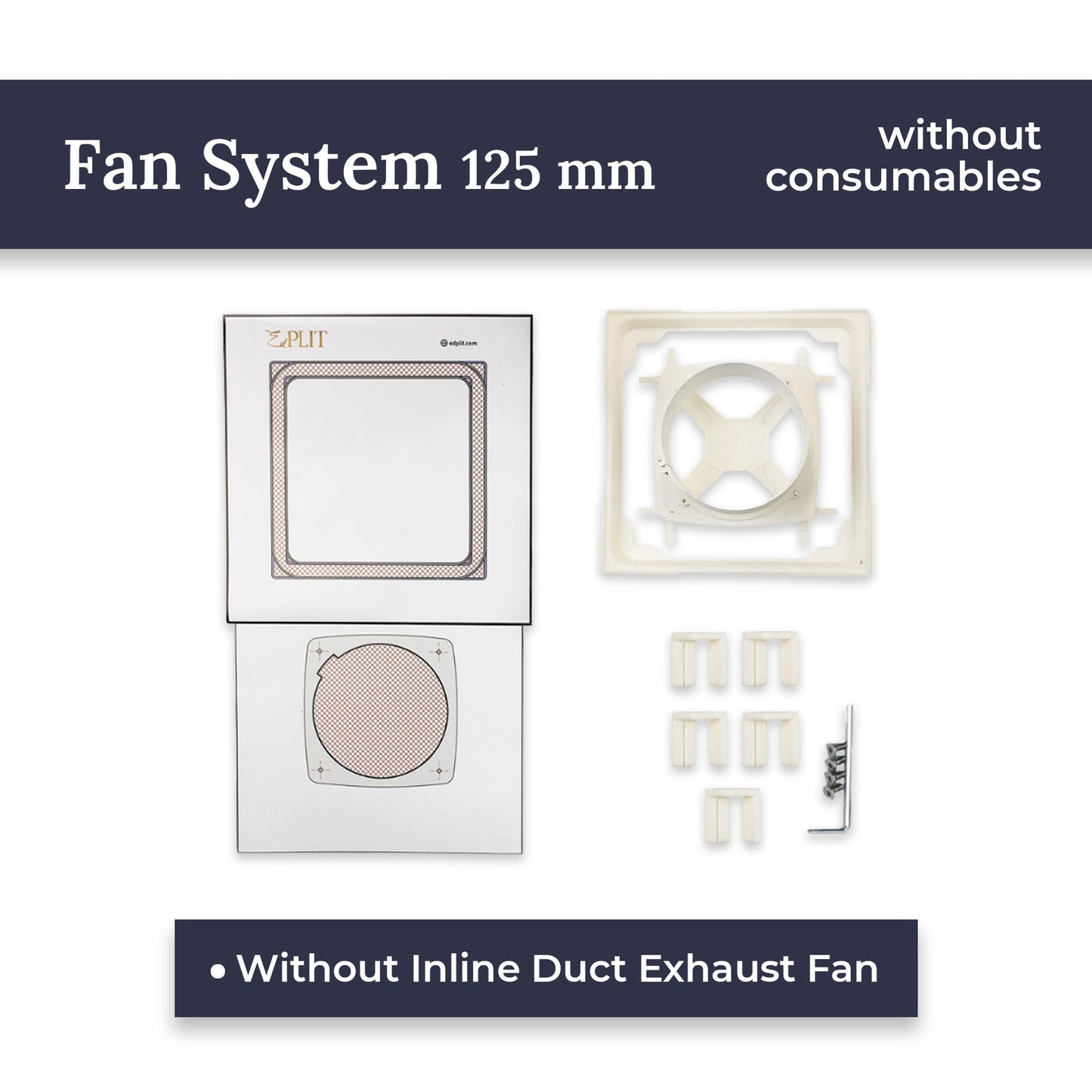

Included in the Set Without Consumables:

Concealed mounting elements
Installation hardware

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Edplit Concealed Fan Mounting System is fully adjustable to fit various project needs:

The system is compatible with:
Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Frame can be removed without special tools

Choose System Size 100 mm 125 mm 150 mm

Choose Set With Consumables Without Consumables
