Hidden Exhaust Fan Mounting System Edplit (Without Consumables) - Without Duct Fans 100/125/150 mm

This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space.

Please Note:
This product is a mounting system only.
The fan is not included and should be selected separately based on your airflow and noise requirements.

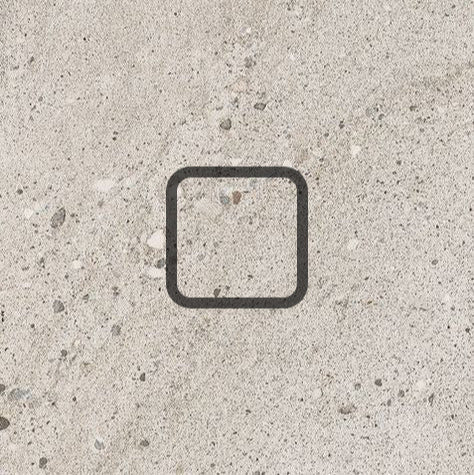

A modular installation system that enables concealed mounting of fans with diameters of 100 mm, 125 mm, or 150 mm. It allows full tiling, leaving only a subtle airflow gap, while ensuring access for maintenance if needed.

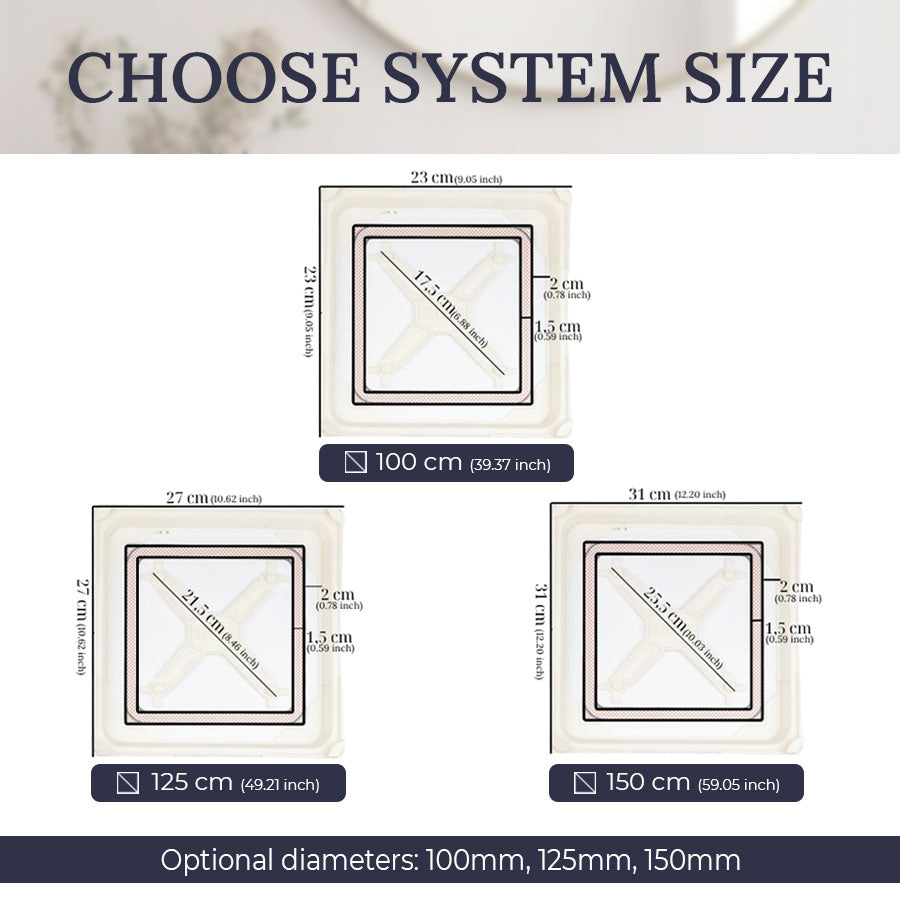

Available Sizes:
100 mm — ideal for guest toilets or compact powder rooms
125 mm — suitable for medium bathrooms or rooms up to 8 m²
150 mm — perfect for larger bathrooms or spaces up to 12 m²

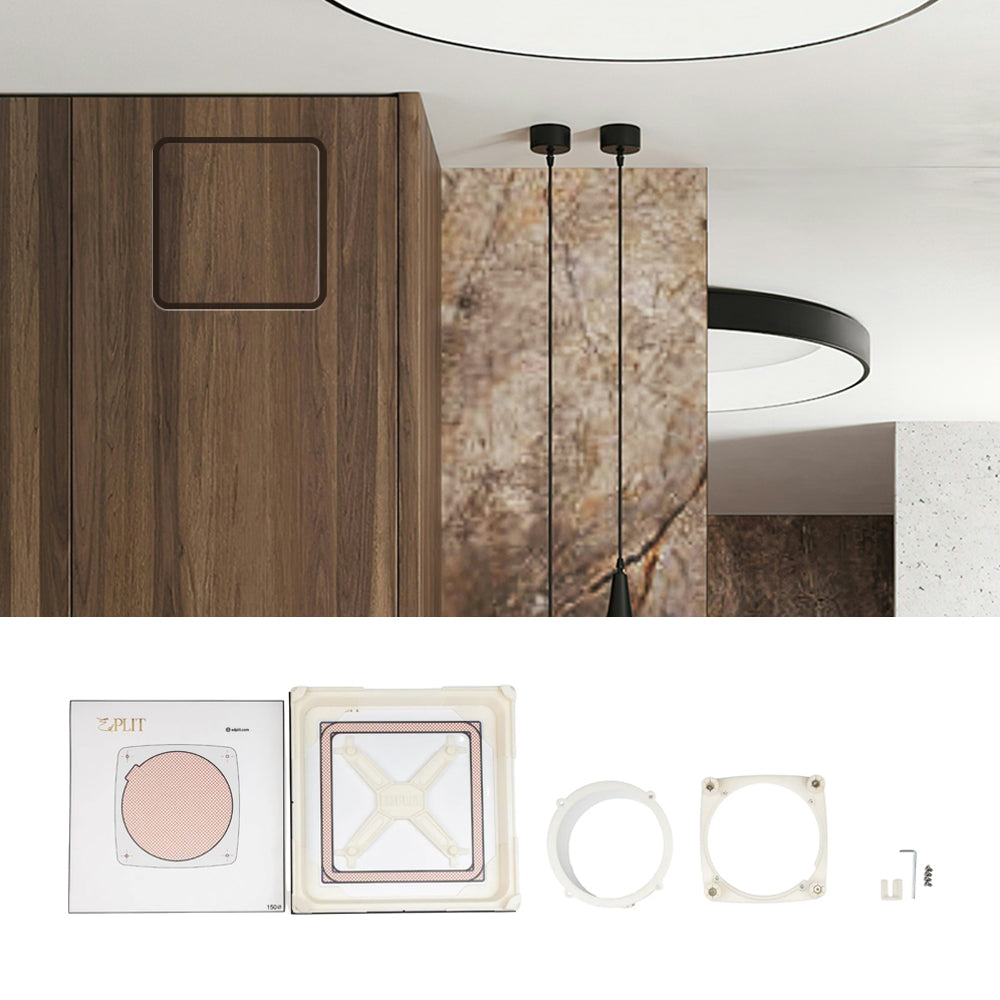

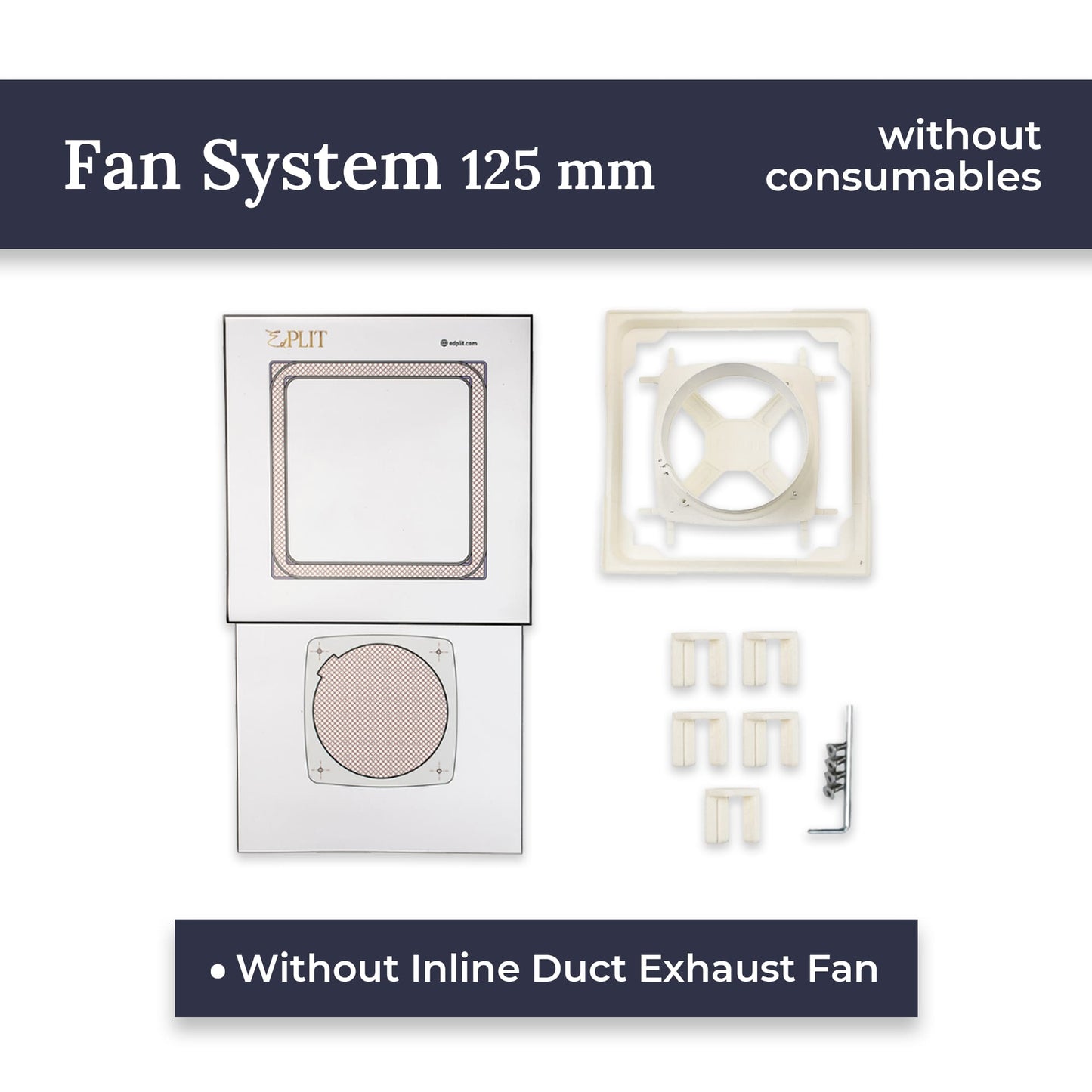

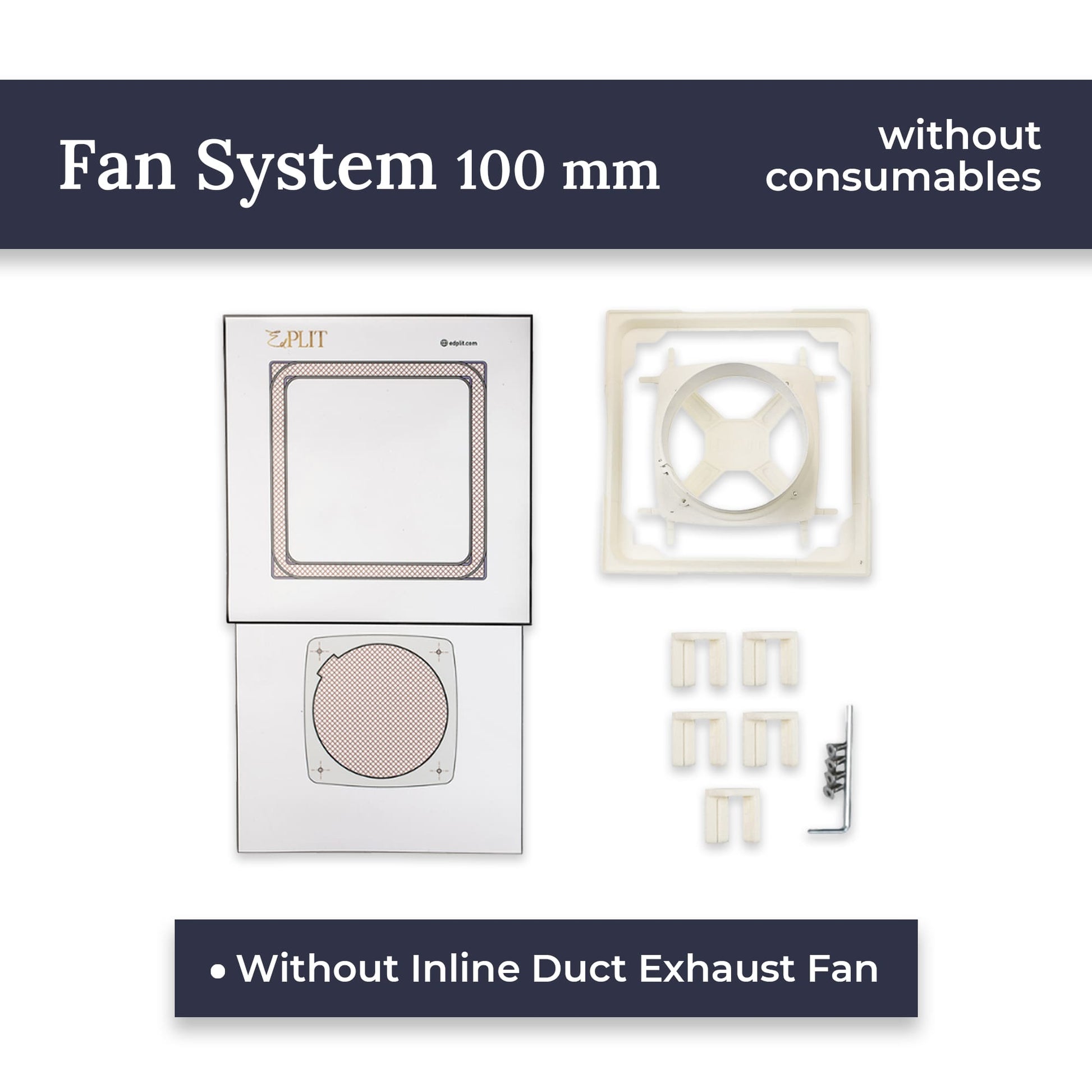

Included in the Set:
Concealed mounting elements
Installation hardware
(Fan not included)

To create the tile insert, use the included adhesive template to mark the cut-out precisely.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template:The kit includes adhesive templates
Glue: PU glue

Edplit Concealed Fan Mounting System is fully adjustable to fit various project needs:

The system is compatible with:
Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm
