Hidden Toilet Flush Button M1 Edplit (Without Consumables) - Сompatible with Geberit, AlcaPlast, TECE, JomoTech, OLI, Viega, TOTO

Hidden Flush Button Edplit M1 is designed for seamless concealed installation behind wall tiles.

Compatible with the most popular concealed flushing systems:

• Geberit Sigma
• Geberit Delta
• Geberit Omega
• AlcaPlast
• TECE
• OLI
• JomoTech
• Viega
• TOTO


The system is easy to adjust and service after installation.

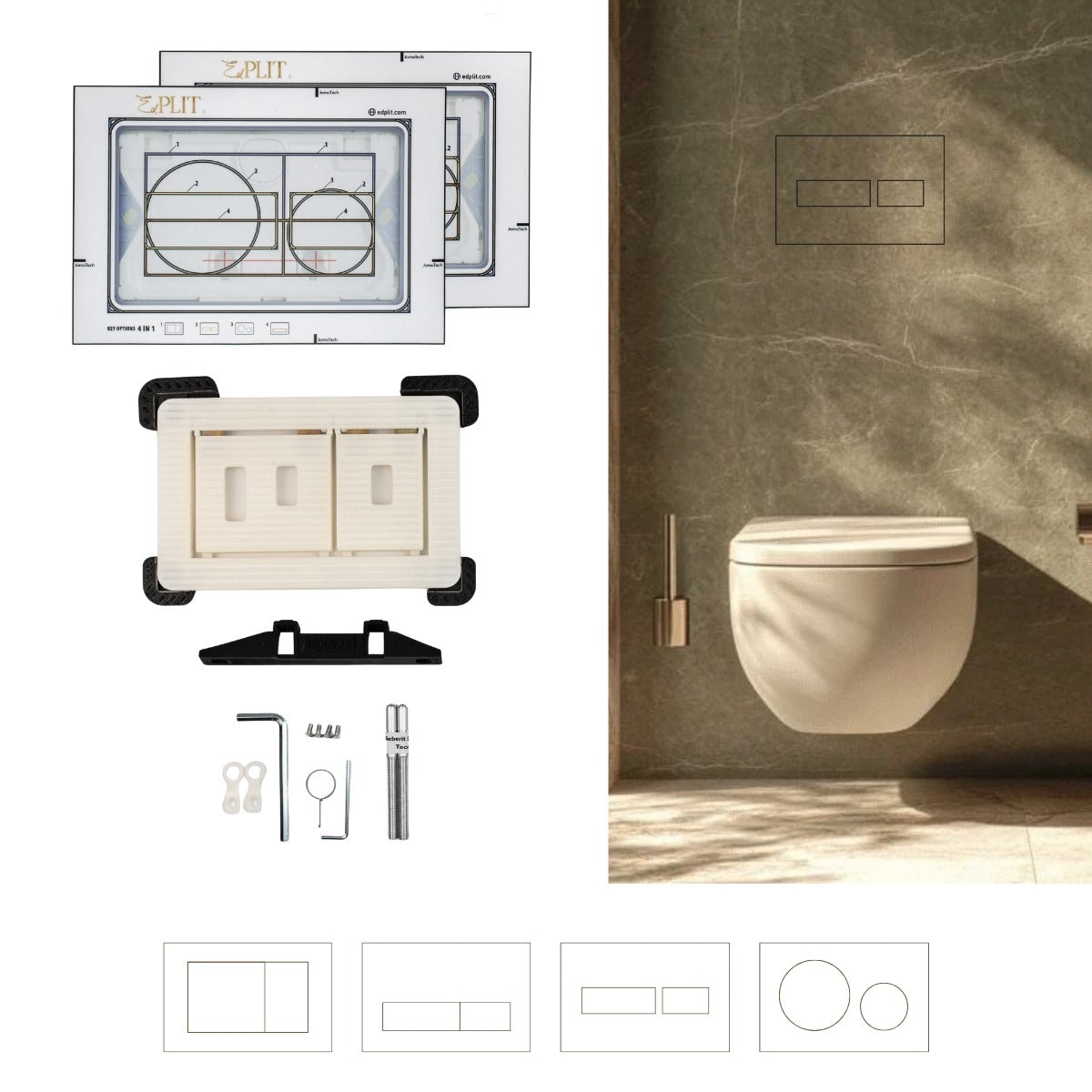

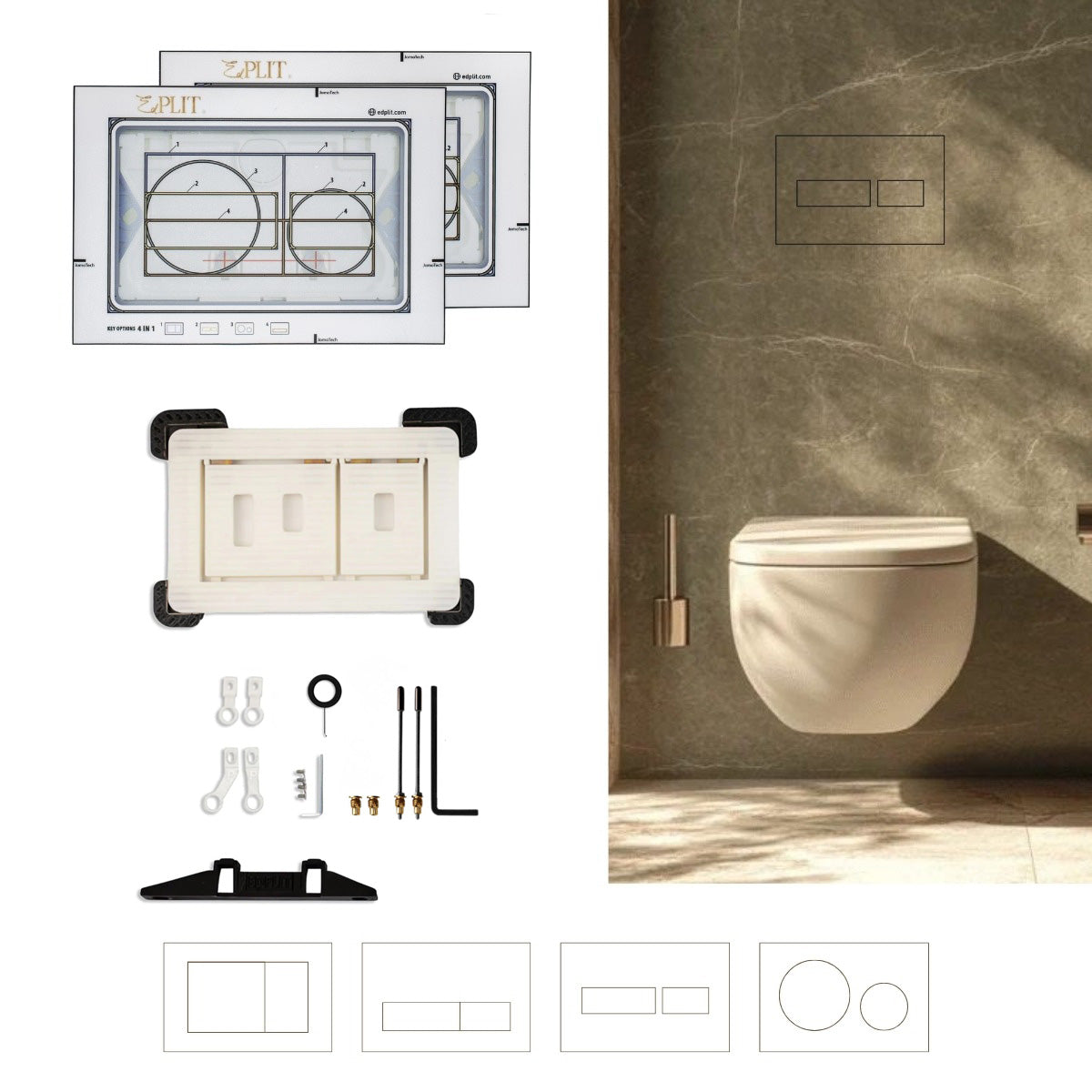

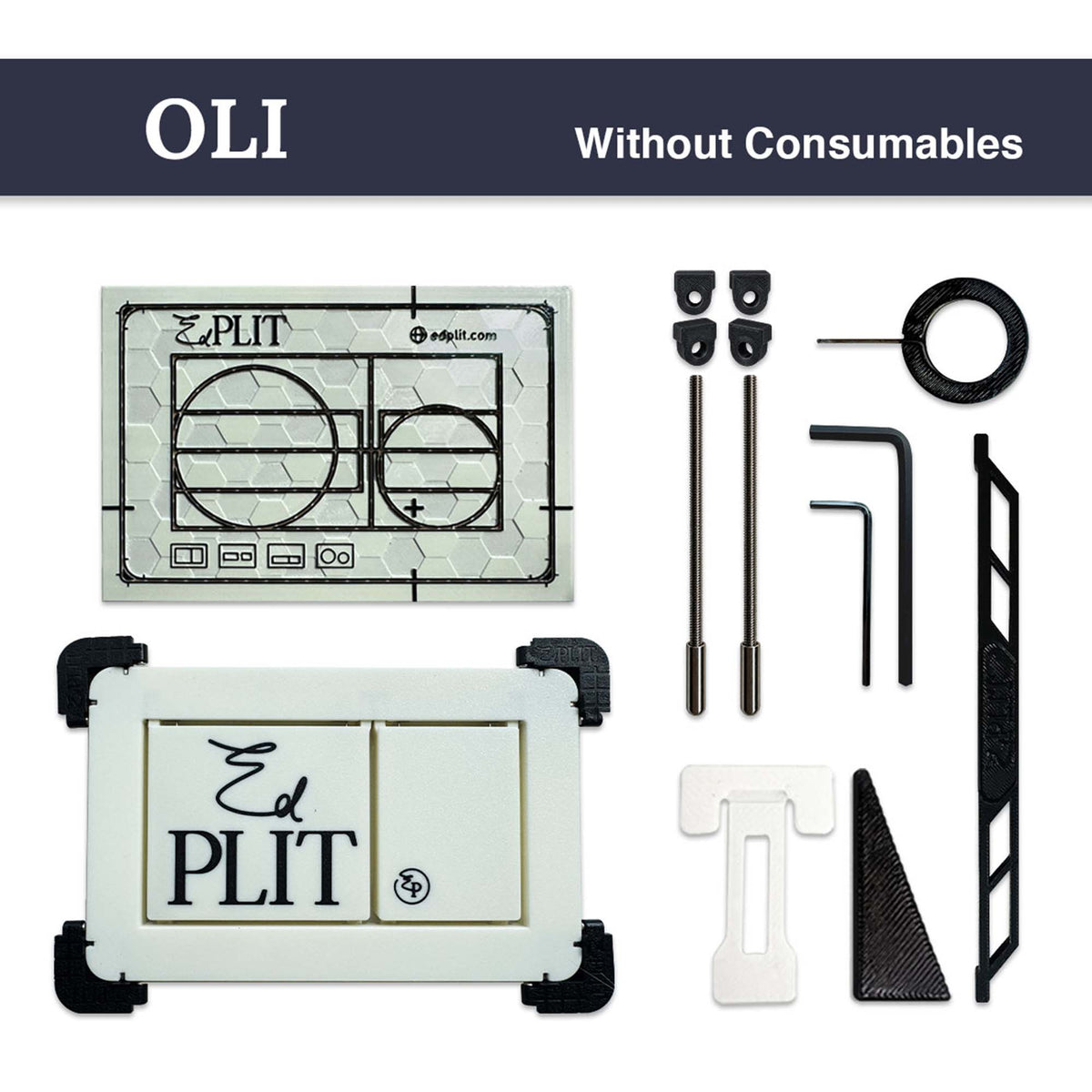

The kit includes a mounting frame, an adjustment tool for button positioning, a hook tool for safe tile insert removal, and a precise adhesive cutting template (2 adhesive templates: One for the actual tile cutting, One as a spare or for training purposes. This allows you to practice or make adjustments if needed).

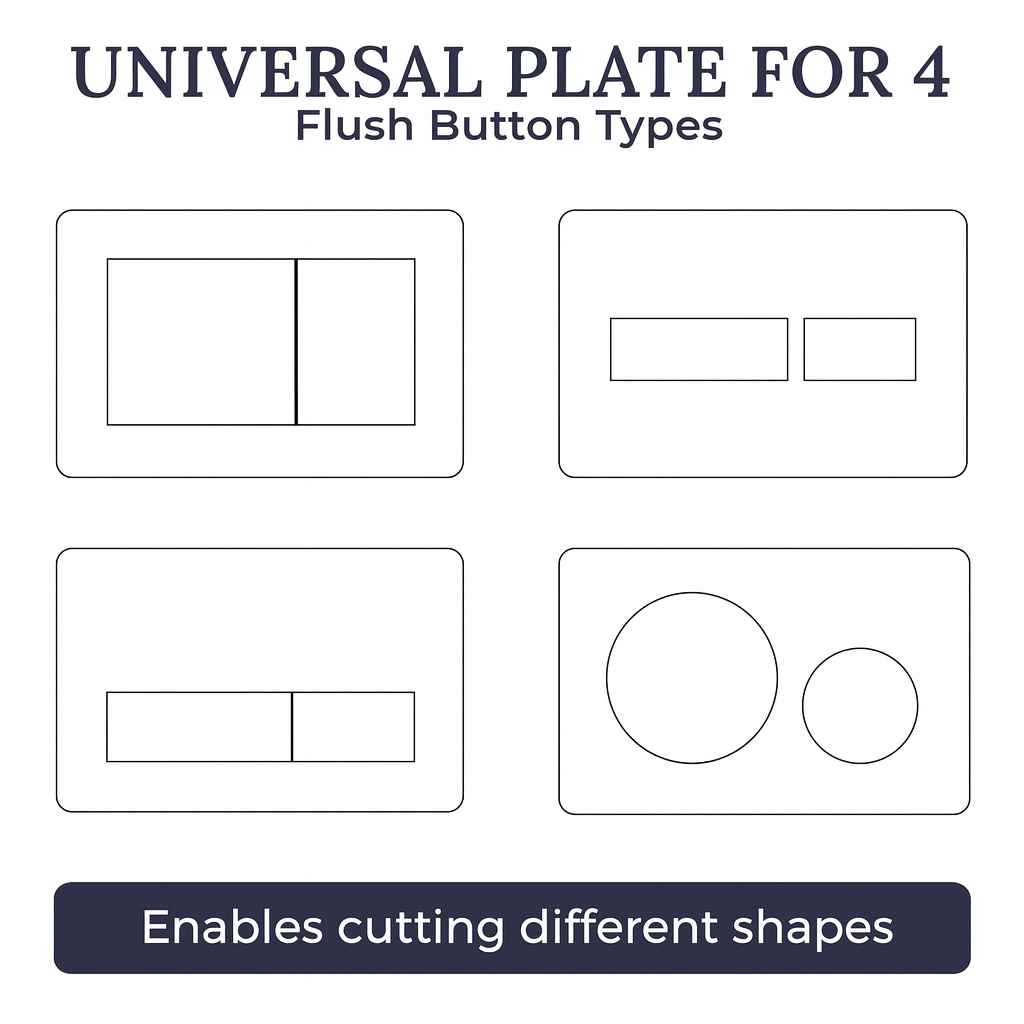

To create the tile insert, use the included adhesive template to mark the cut-out precisely. The insert will become the visible flush button, so accurate cutting is essential.

Recommended tools:

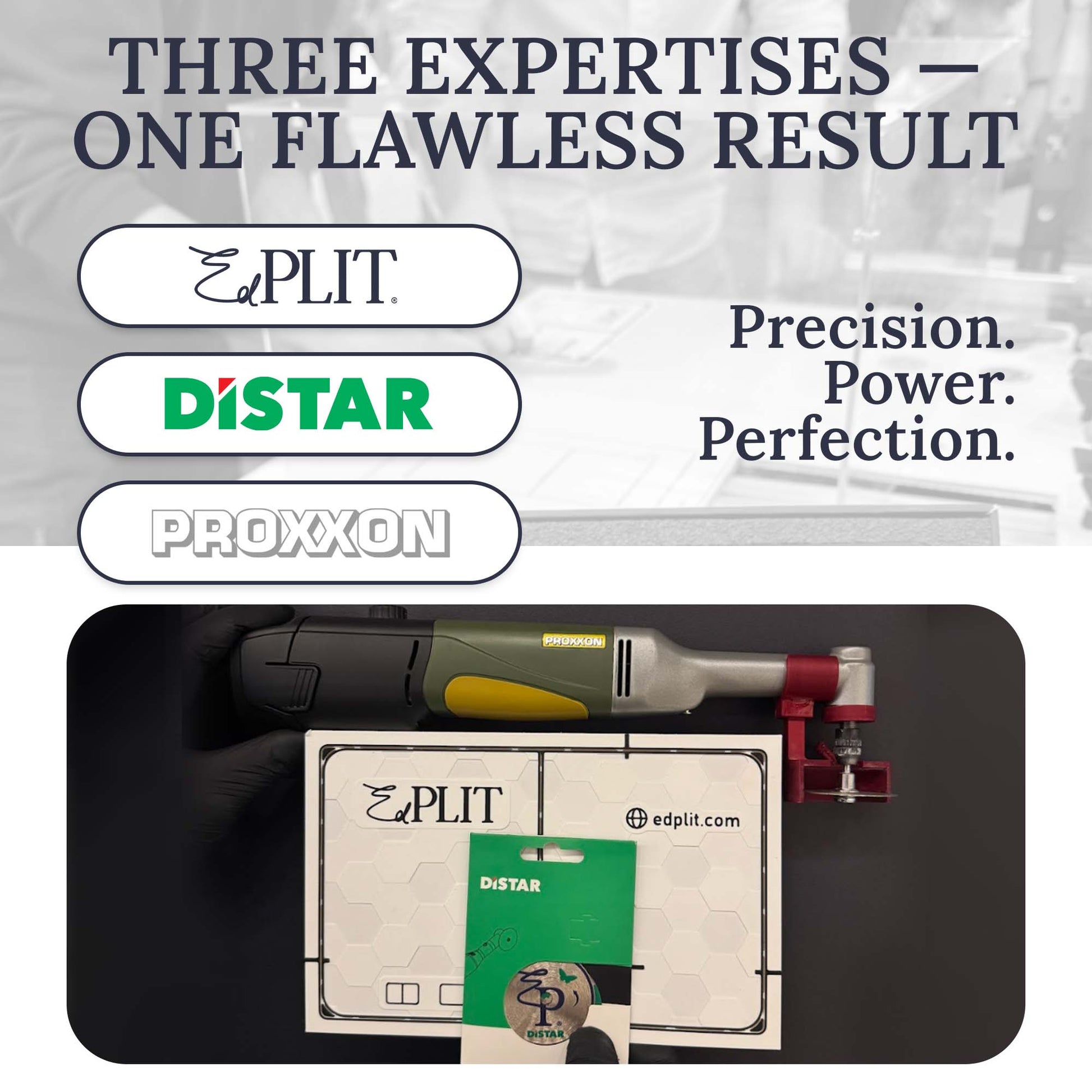

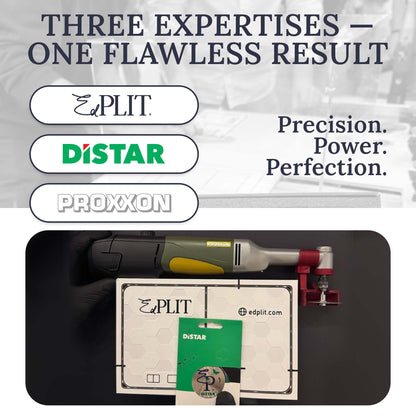

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone. (If you plan to use waterjet cutting, please contact our manager and we will provide you with the cutting files.)
Glue: PU glue

The system is compatible with:

Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

• Supports tile thickness up to 12 mm
• Frame and push rods can be adjusted without special tools
• Button position and sensitivity can be fine-tuned after tile installation
• Quick and simple calibration via the button opening

Please note that the button cannot be turned over and installed vertically.
