Hidden Frameless Flush Button EdPlit M4 - Сompatible with Geberit, AlcaPlast, TECE, Viega, VitrA, Noken, JomoTech, Cersanit, TOTO

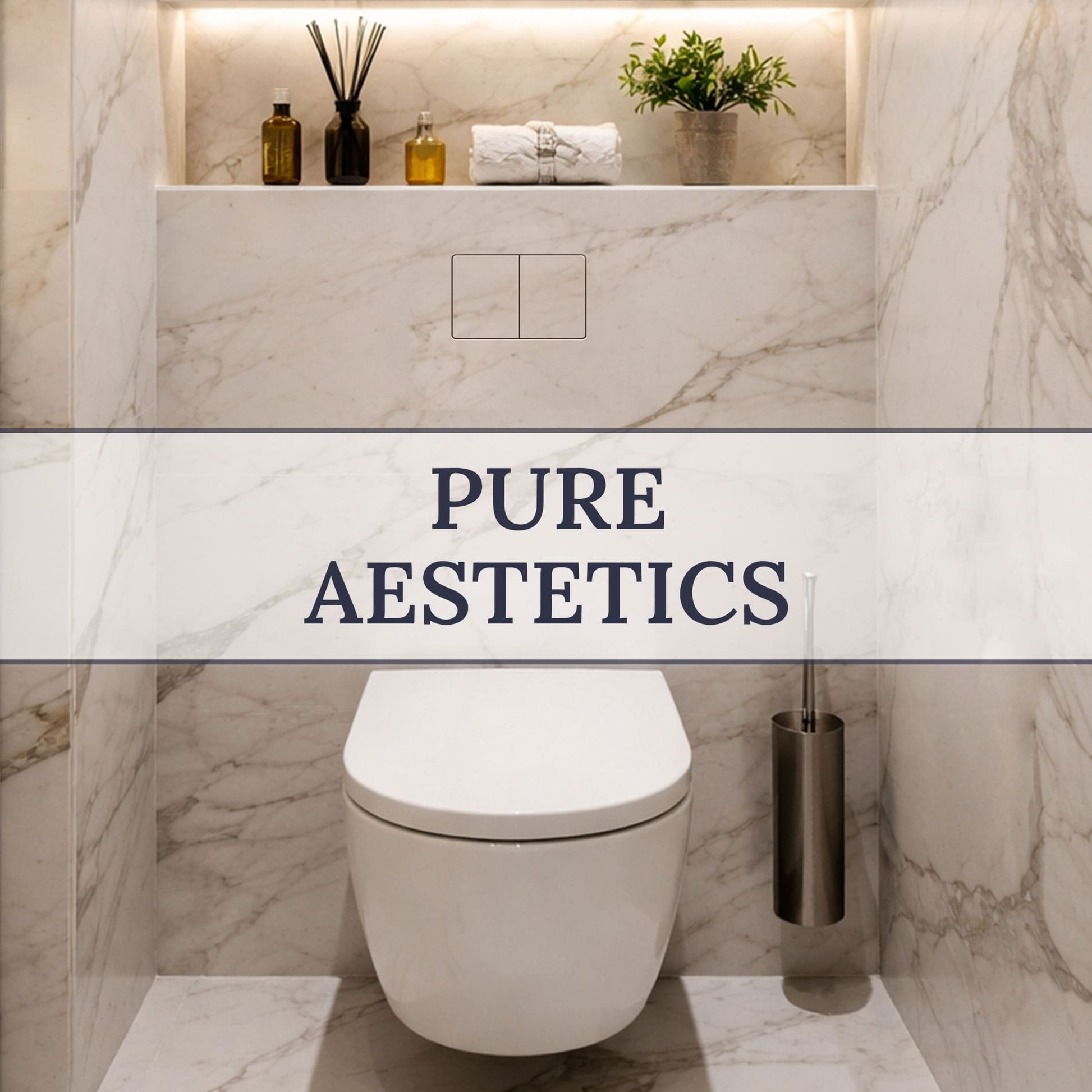

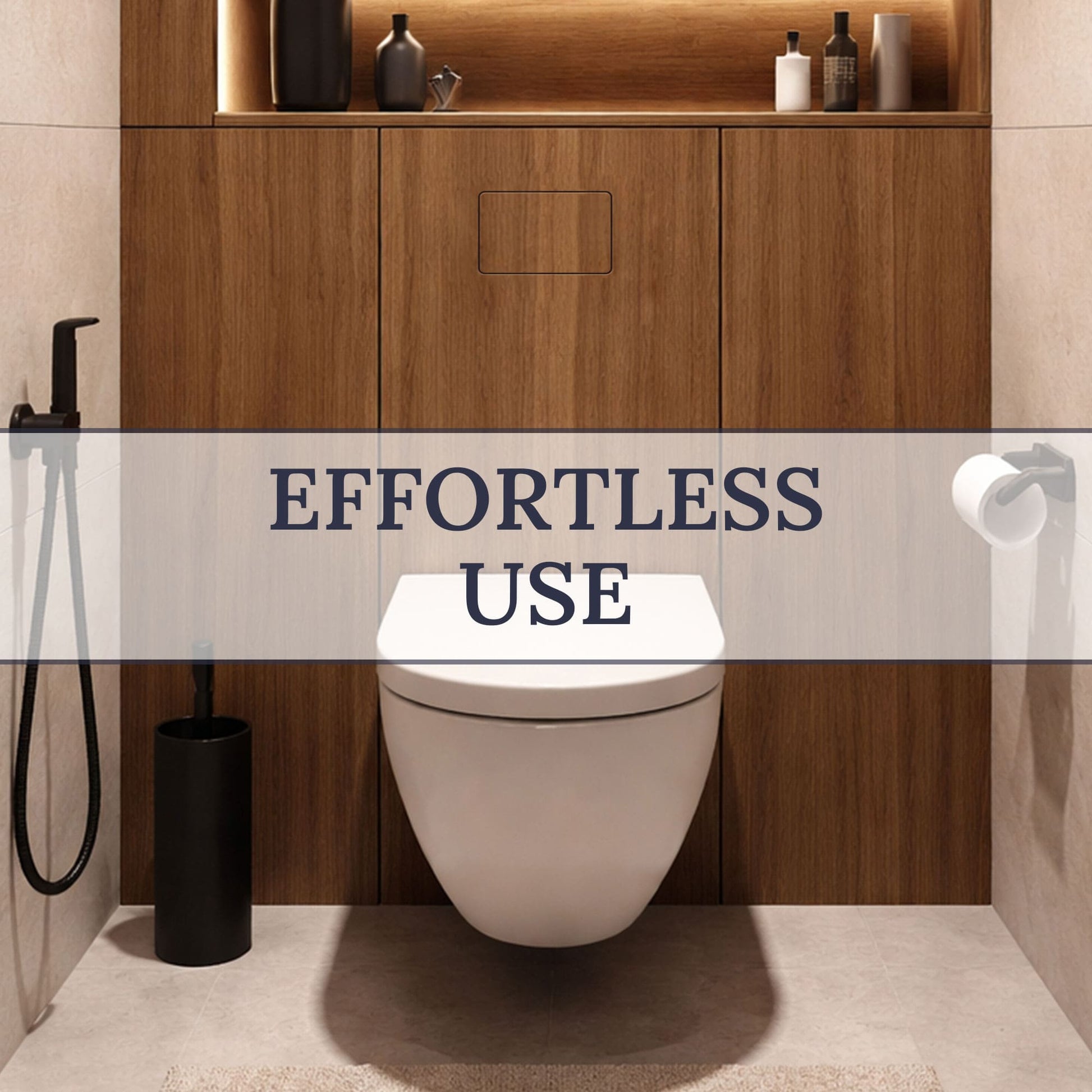

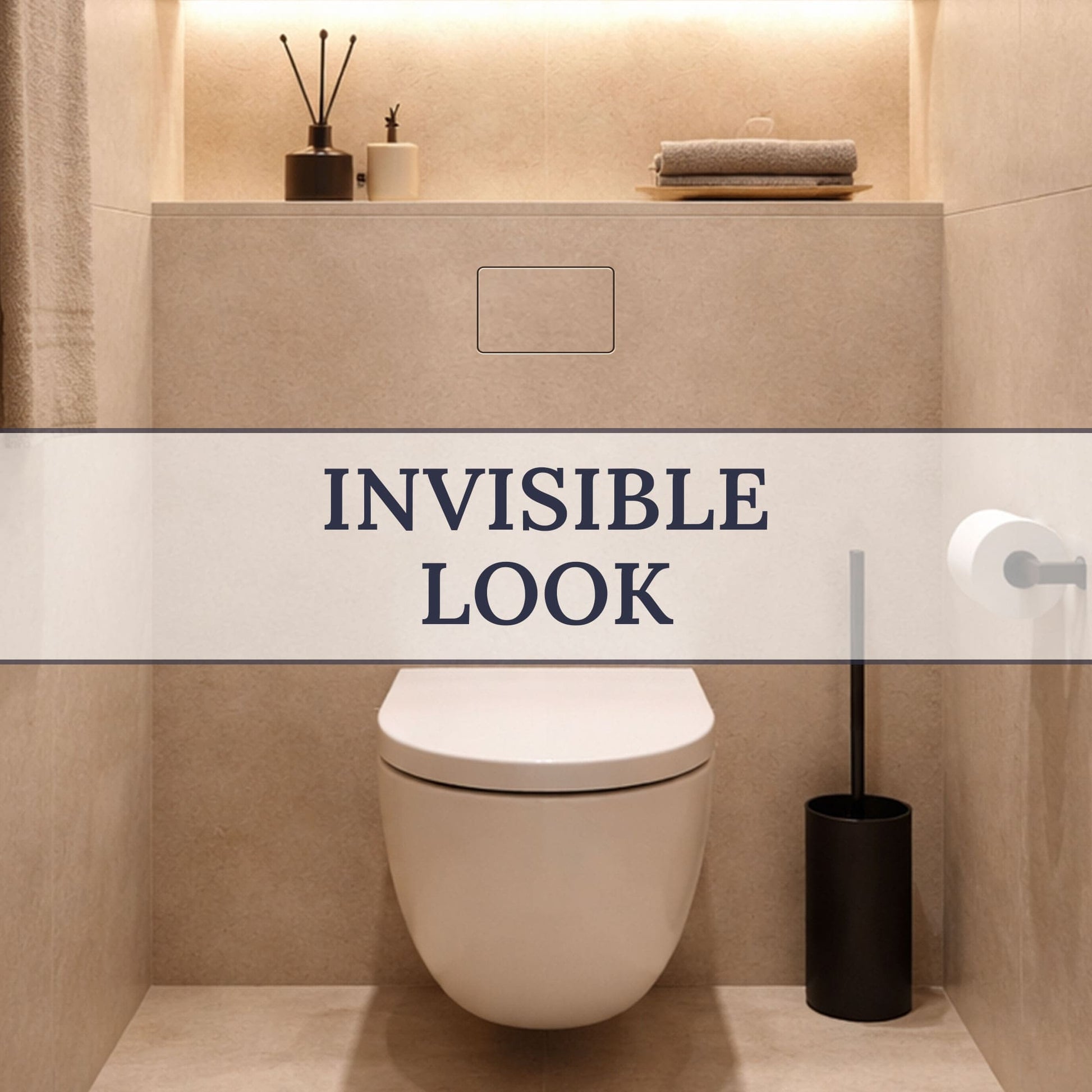

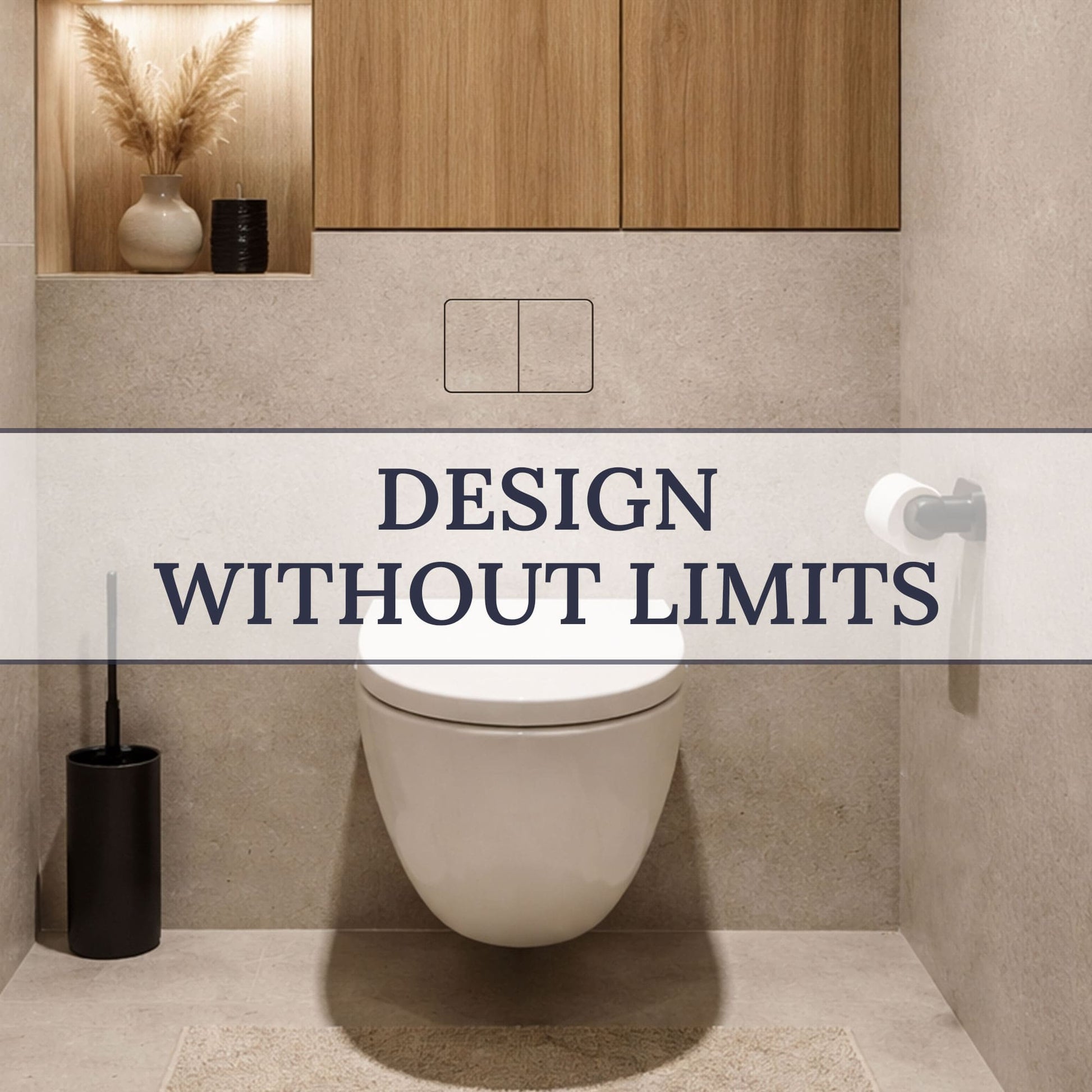

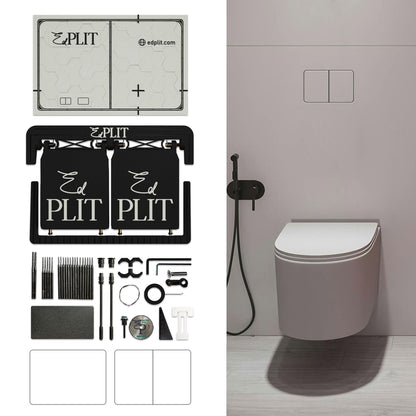

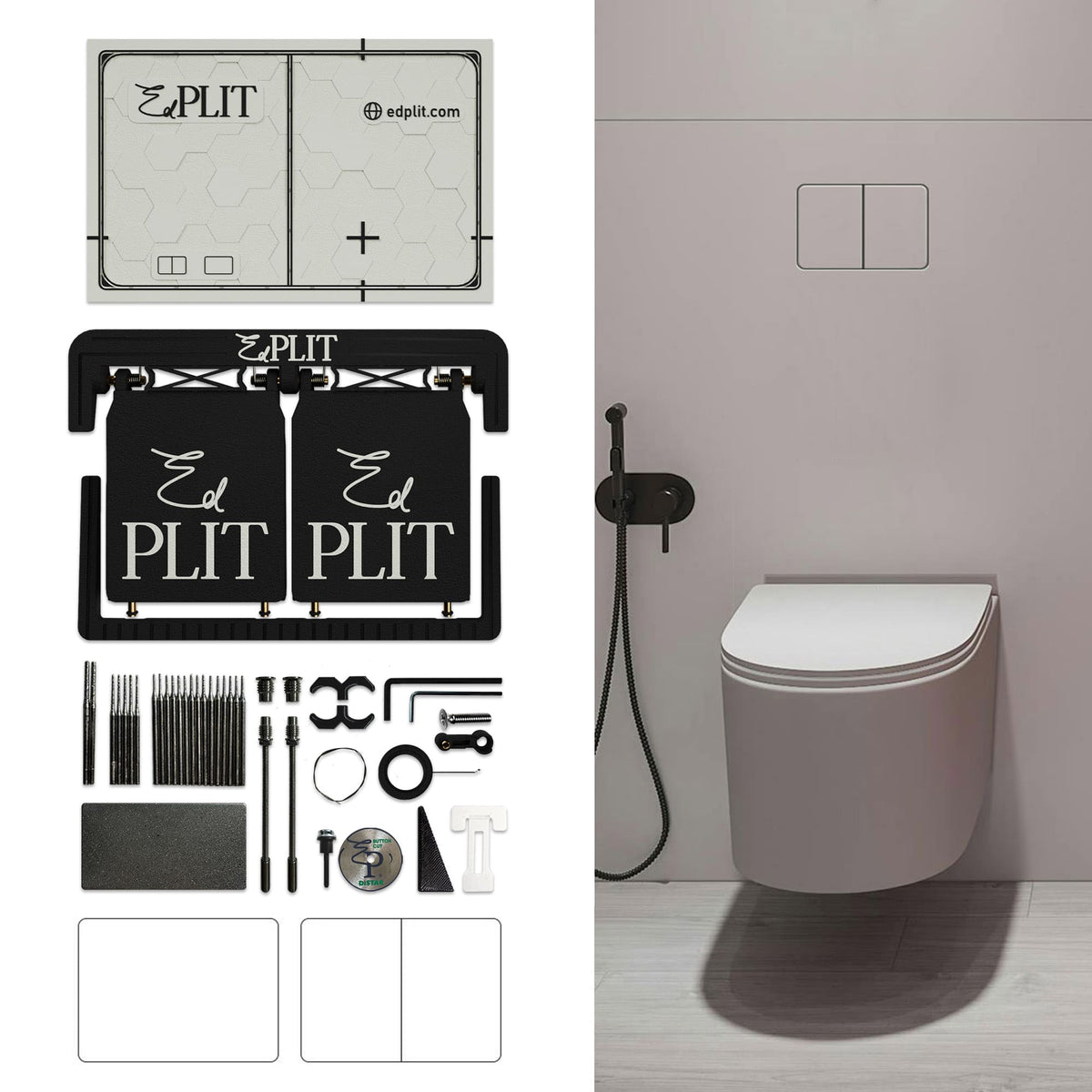

The Edplit M4 concealed flush button is designed for minimalist modern interiors with concealed installation behind wall tiles.

Compatible with the most popular concealed flush systems:
Geberit Sigma, Alkaplast, Viega, Vitra, Tece, Delta, Omega,  Noken, JomoTech, Cersanit, TOTO.

The system is easy to set up and maintain after installation.

The main advantages of the M4 button:

• Provides quick cutting and installation: Compared to installation systems from other manufacturers - time savings of up to 50%
• Installation possible after laying tiles.
• The guide pad is made of durable plastic, thanks to which the diamond disc is held stably in its path and provides an even and precise cut.

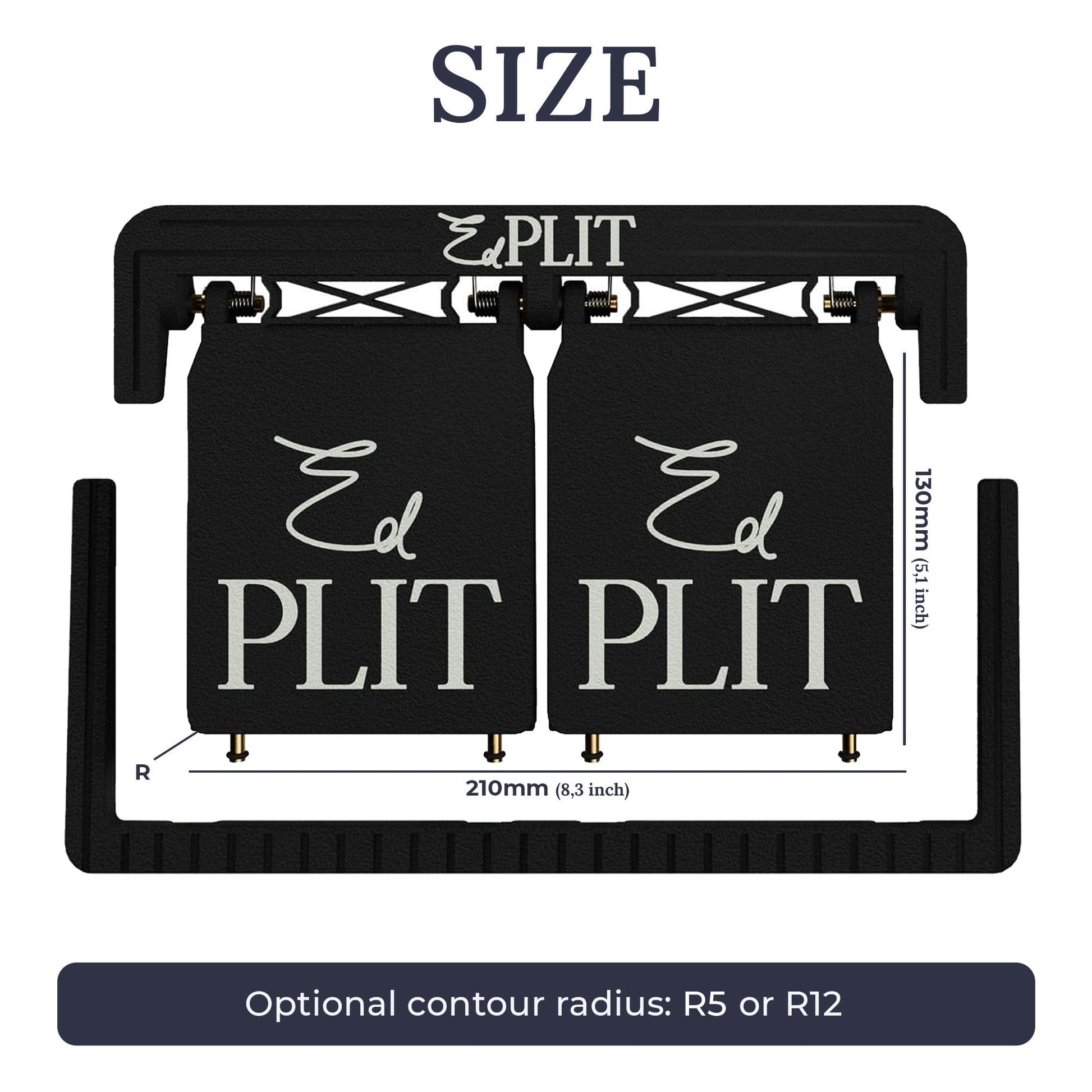

• Two rounding options are available: large - R12, small - R5.

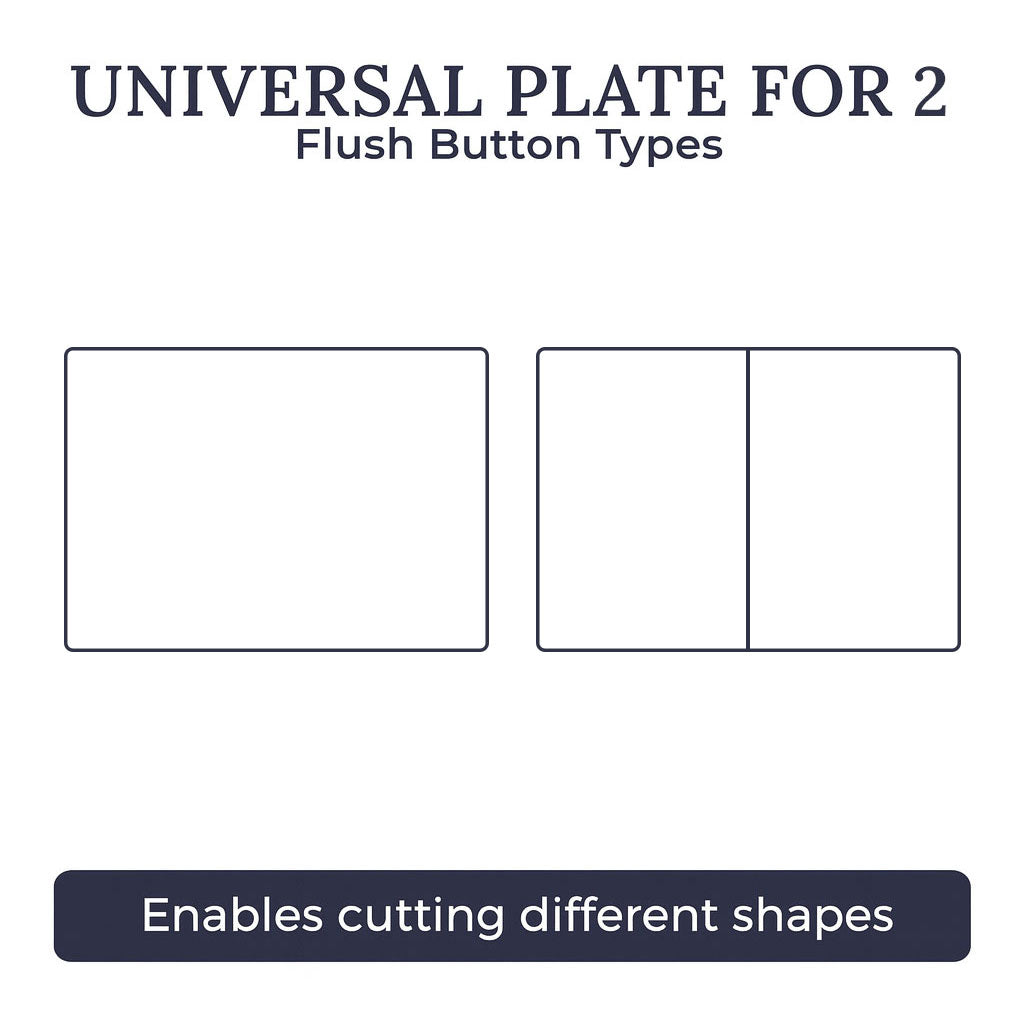

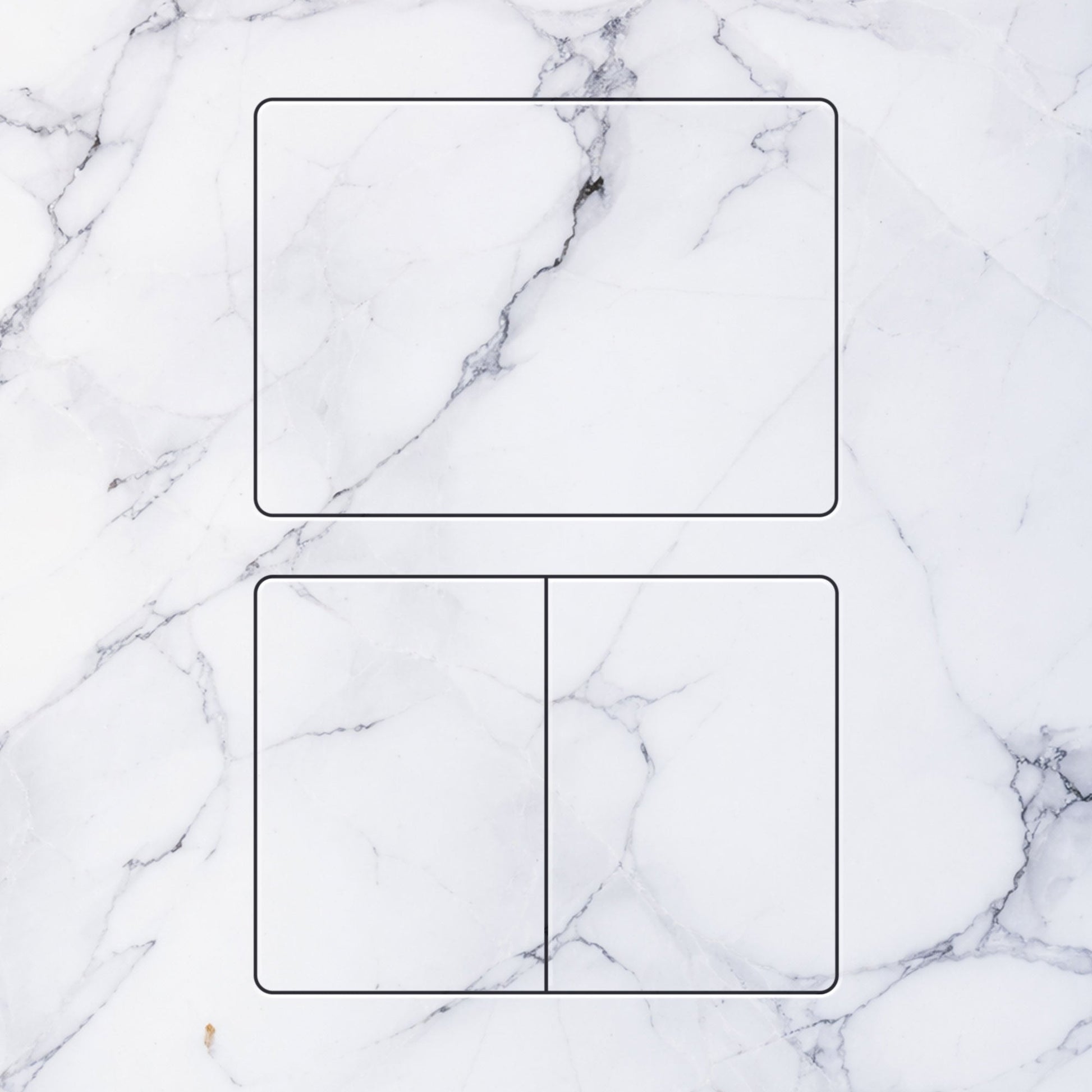

• Several shapes for cutting the button to choose from: one solid large button, two separate buttons.
• The mechanism is made of high-quality materials: impact-resistant plastic, brass components and a stainless steel spring.

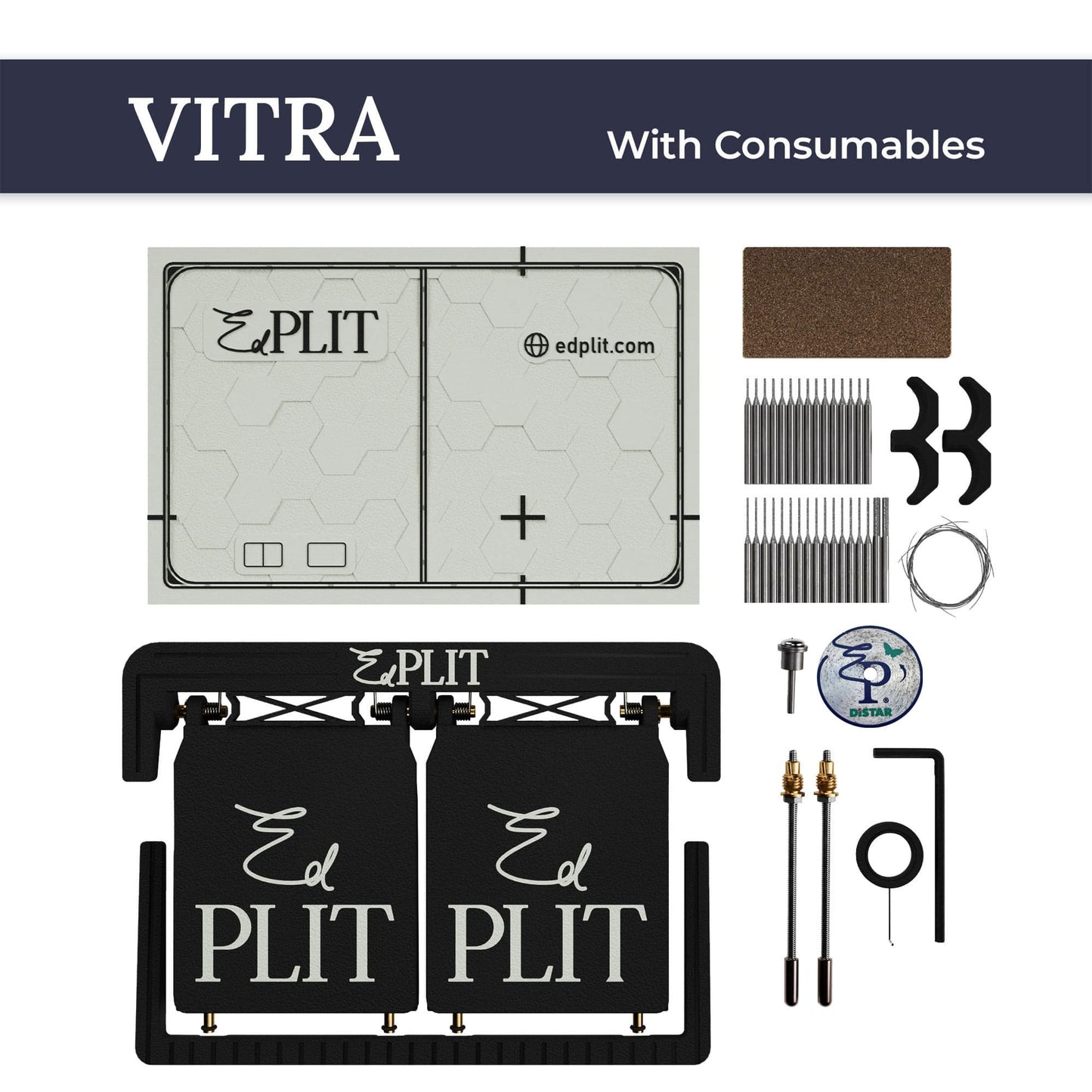

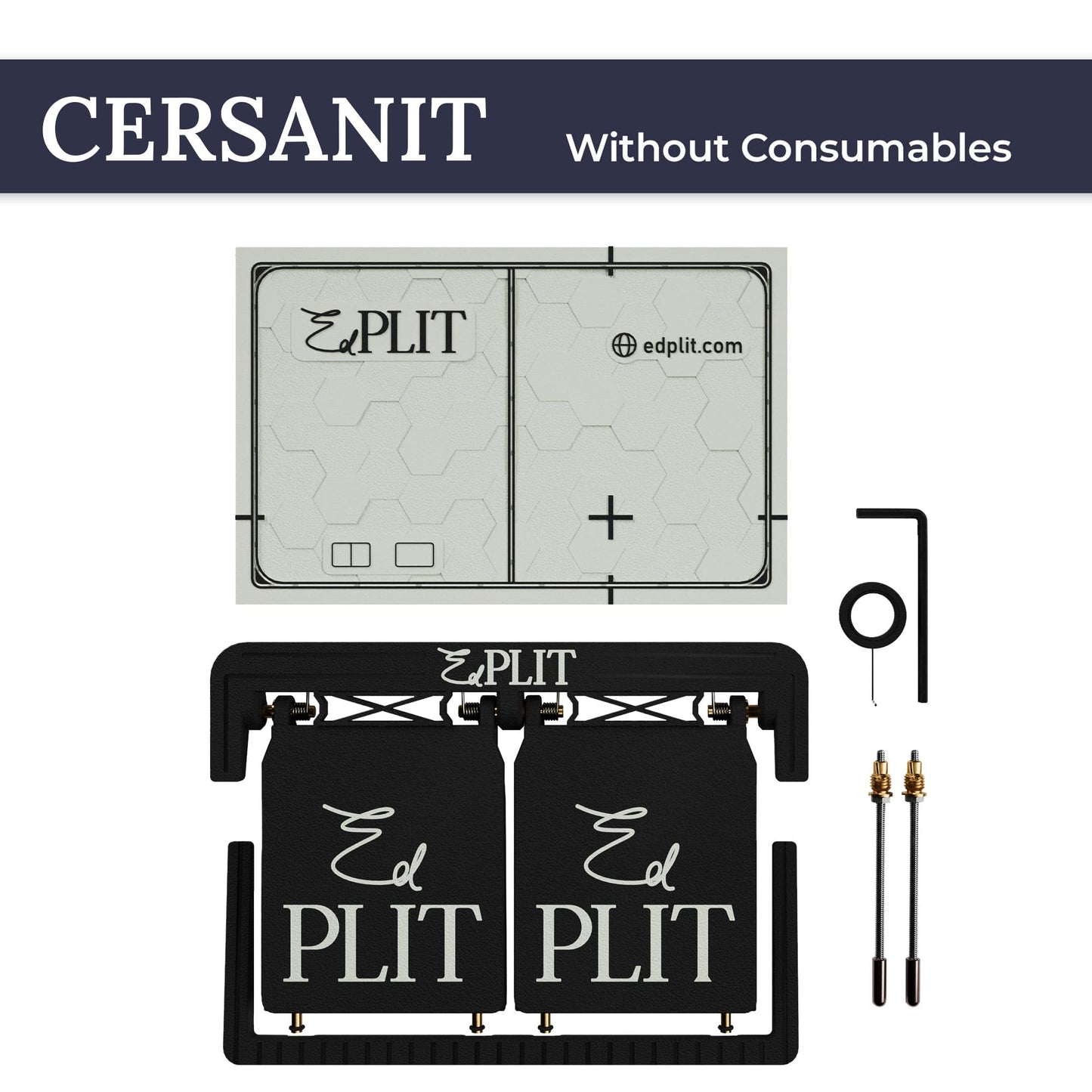

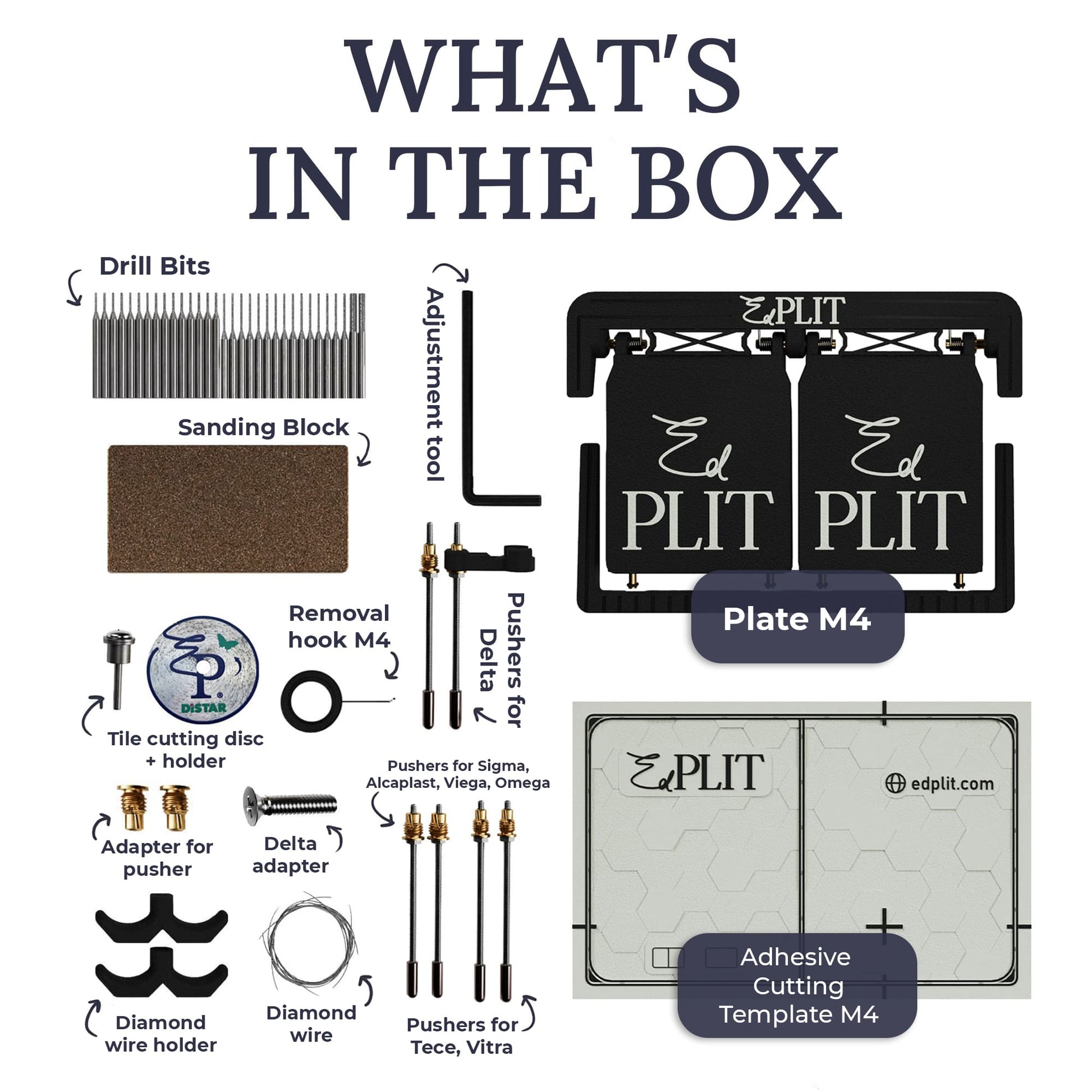

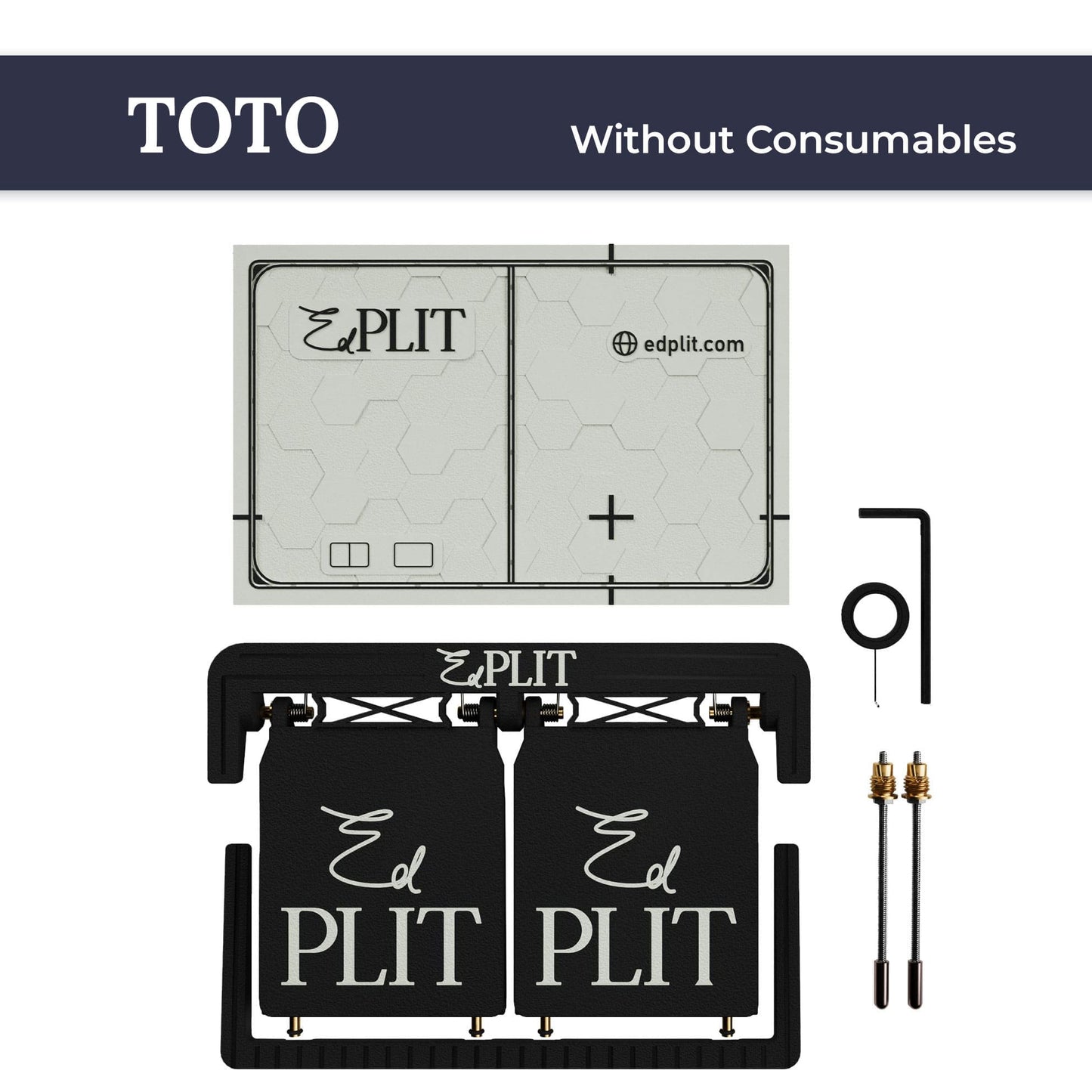

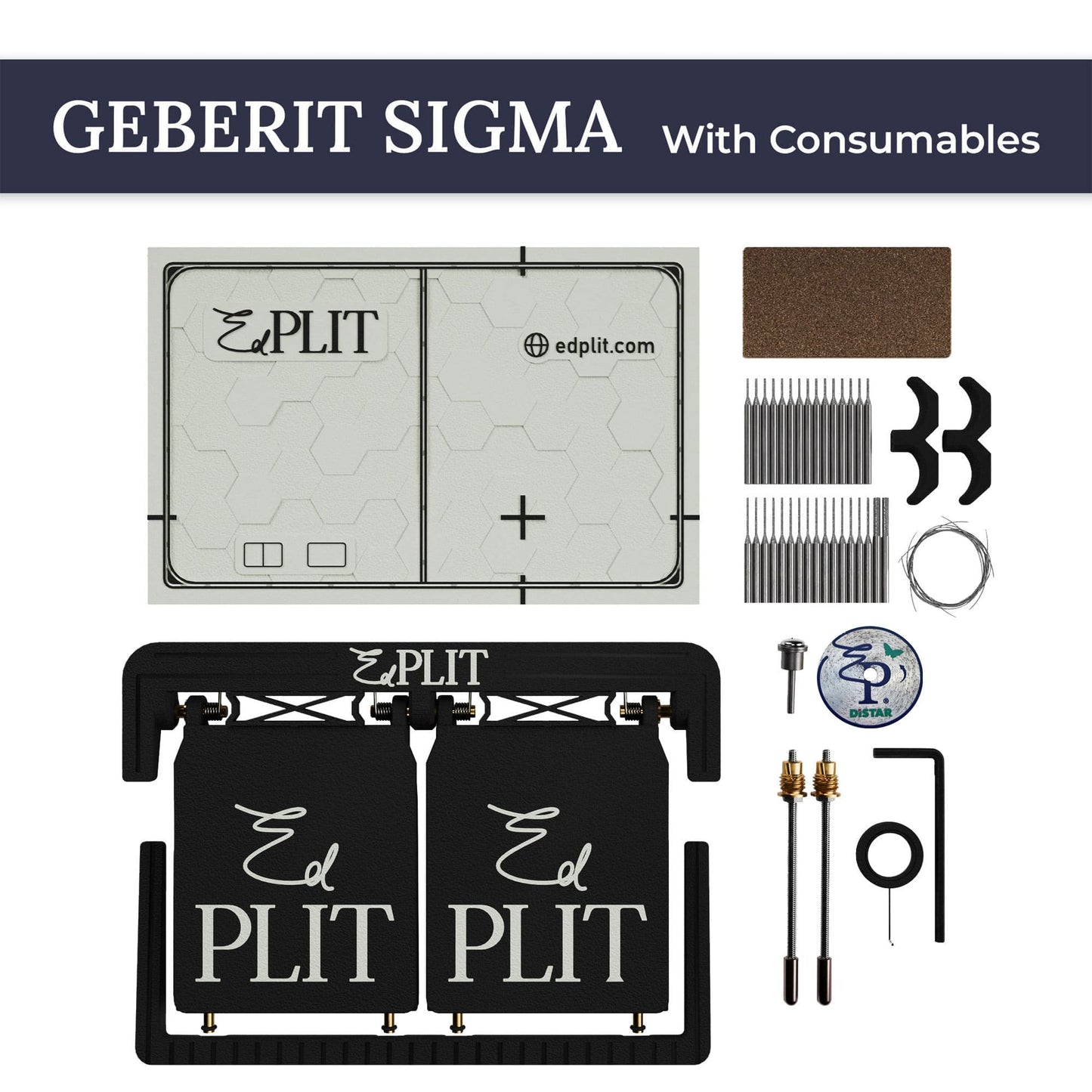

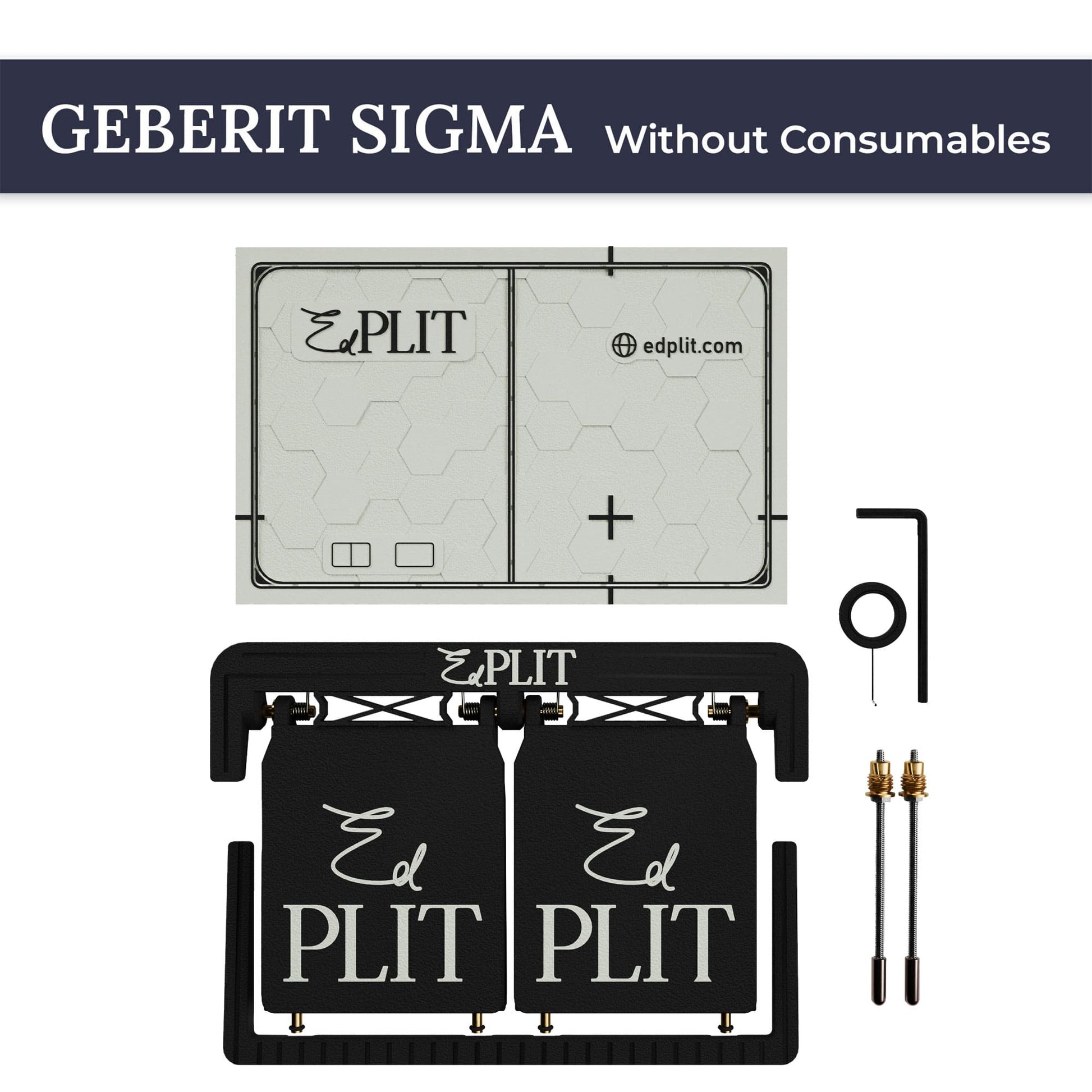

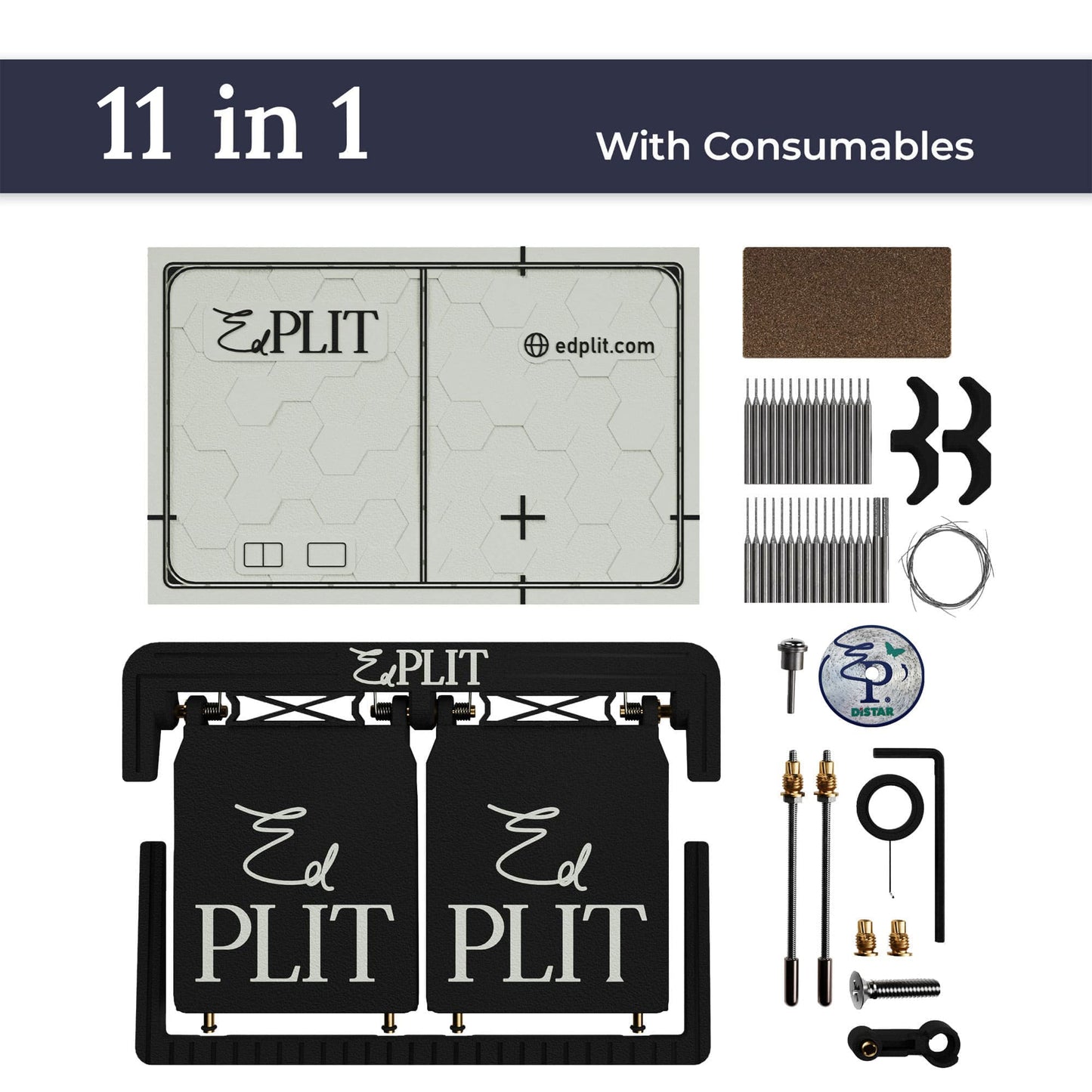

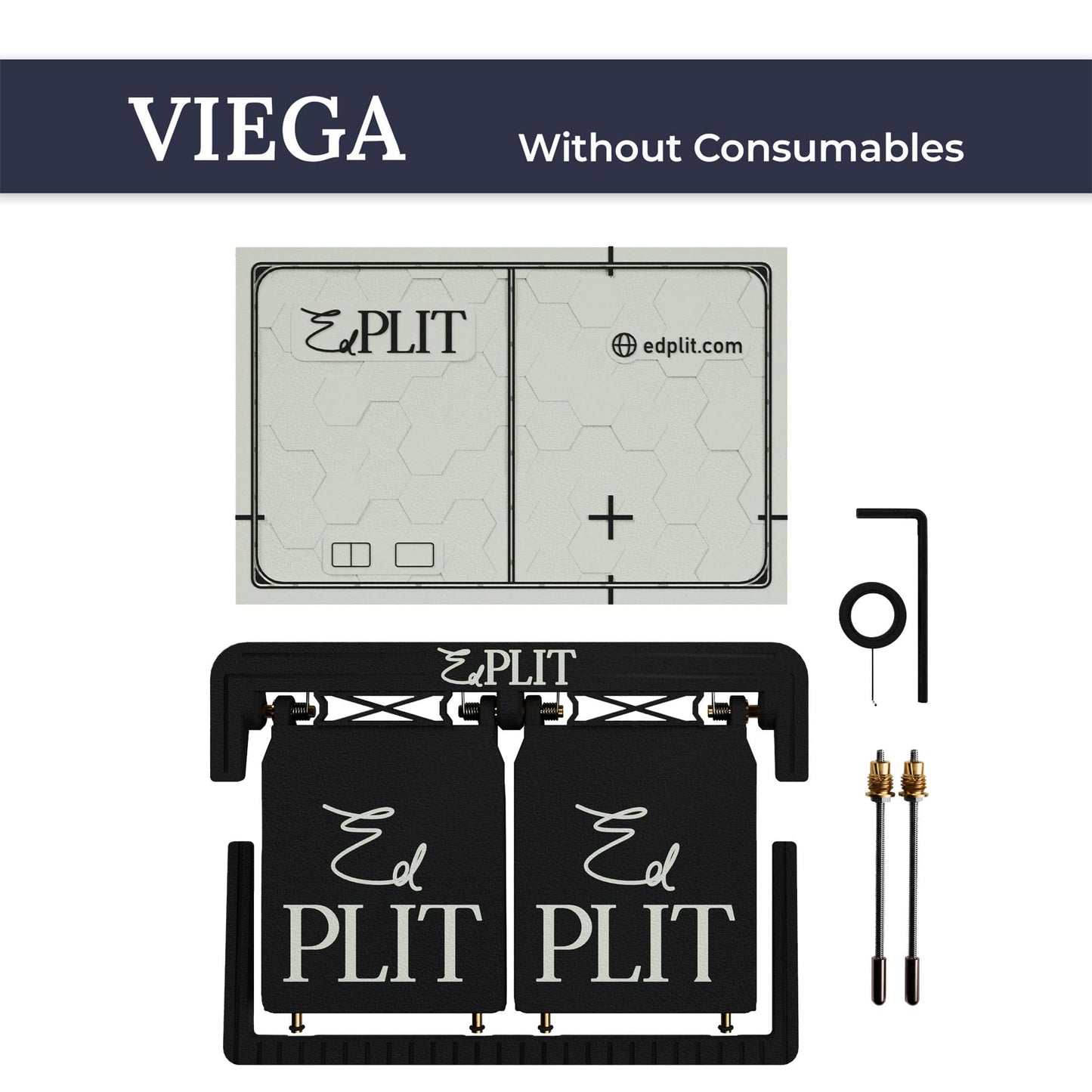

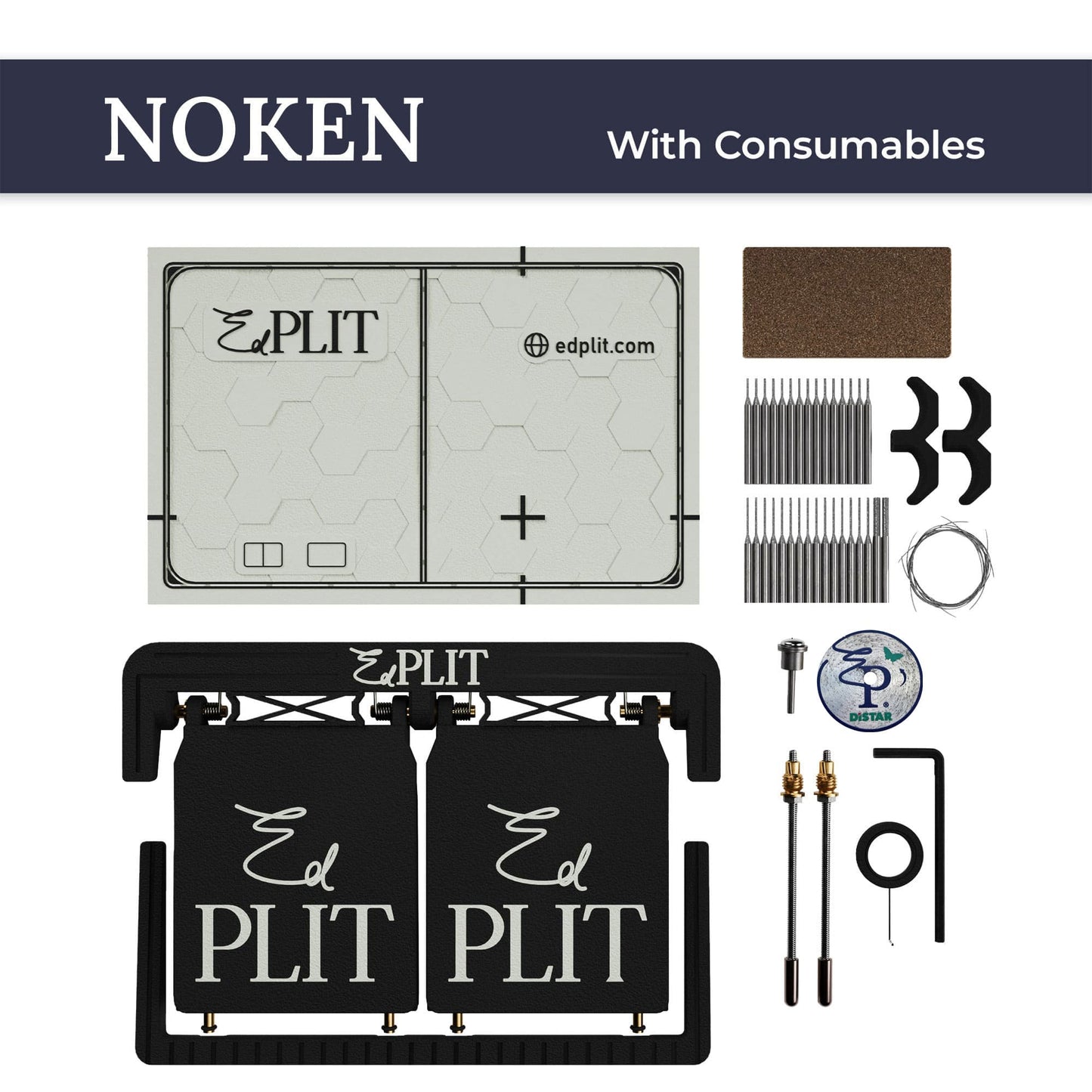

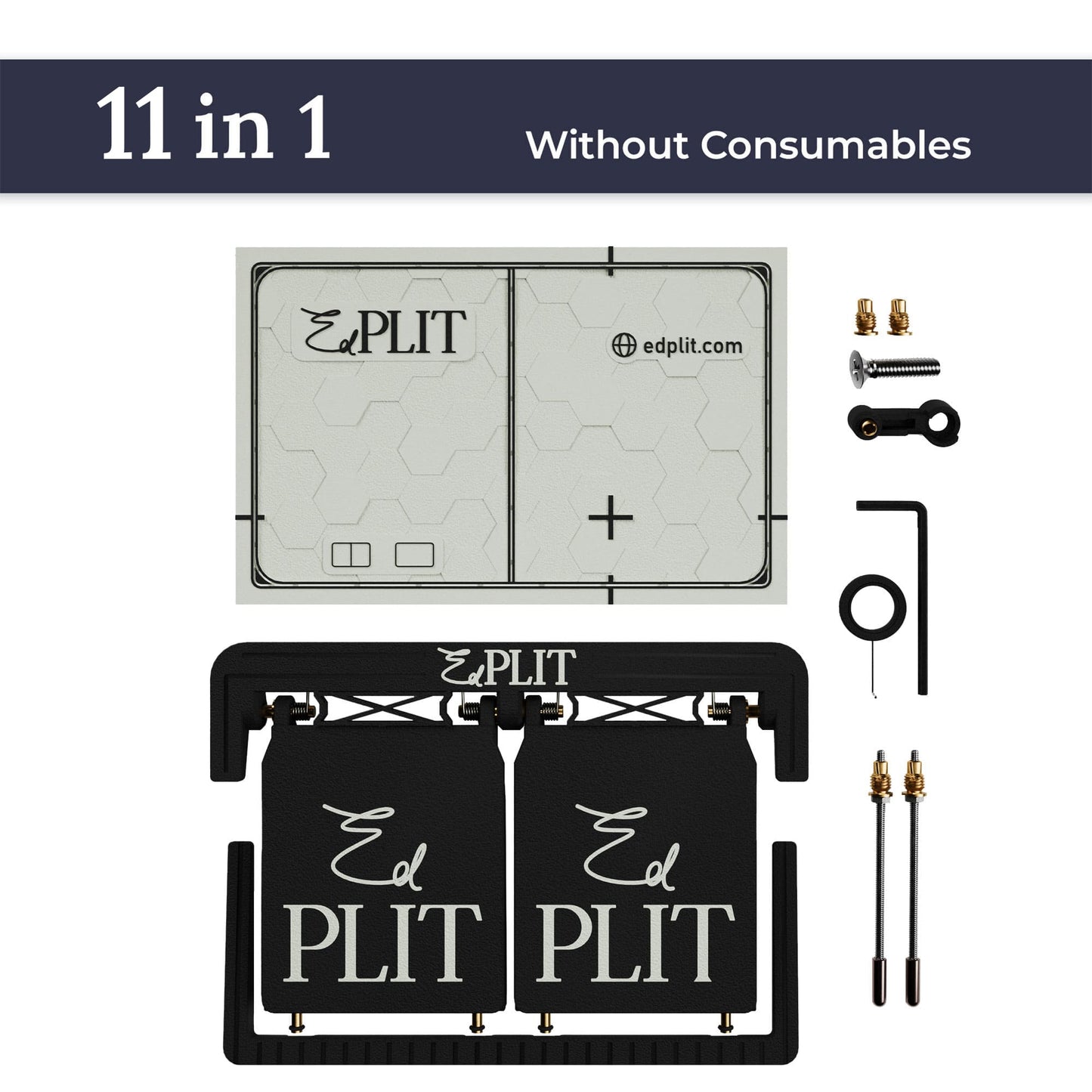

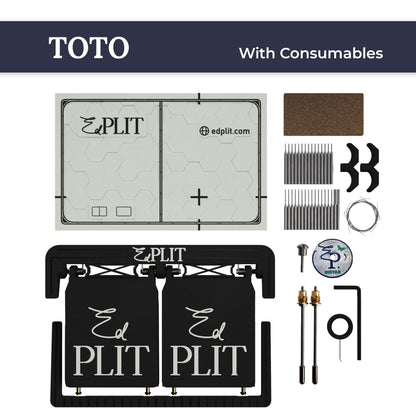

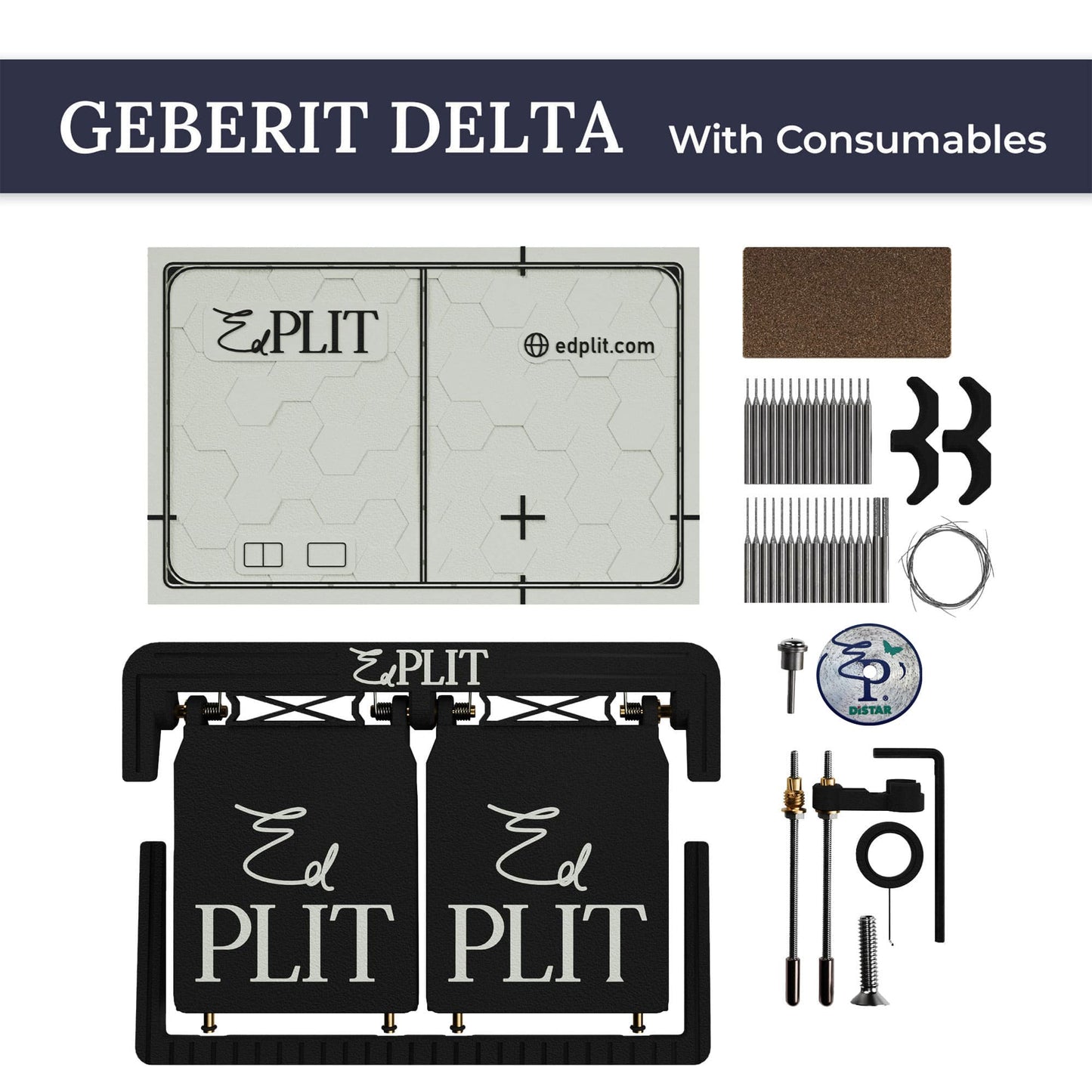

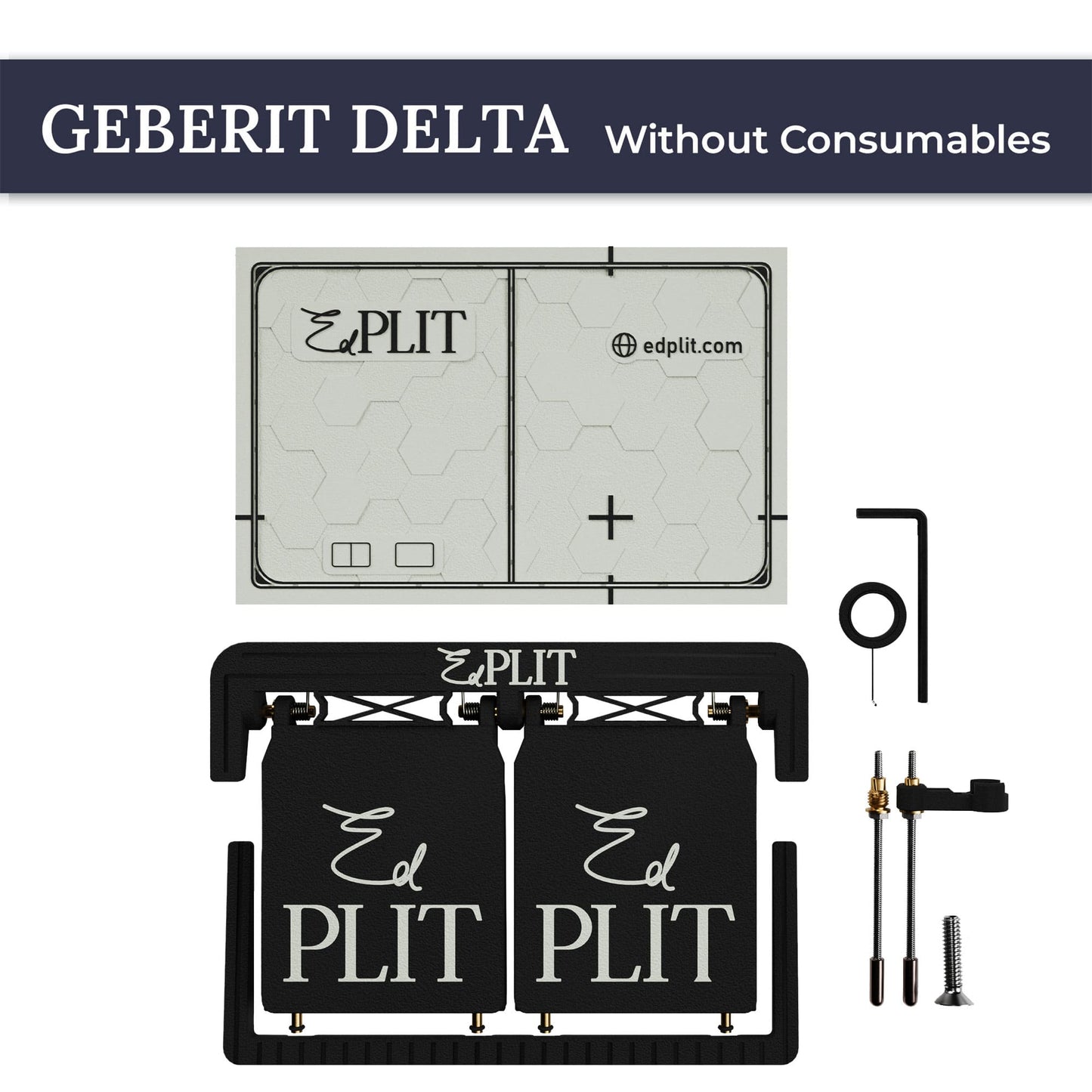

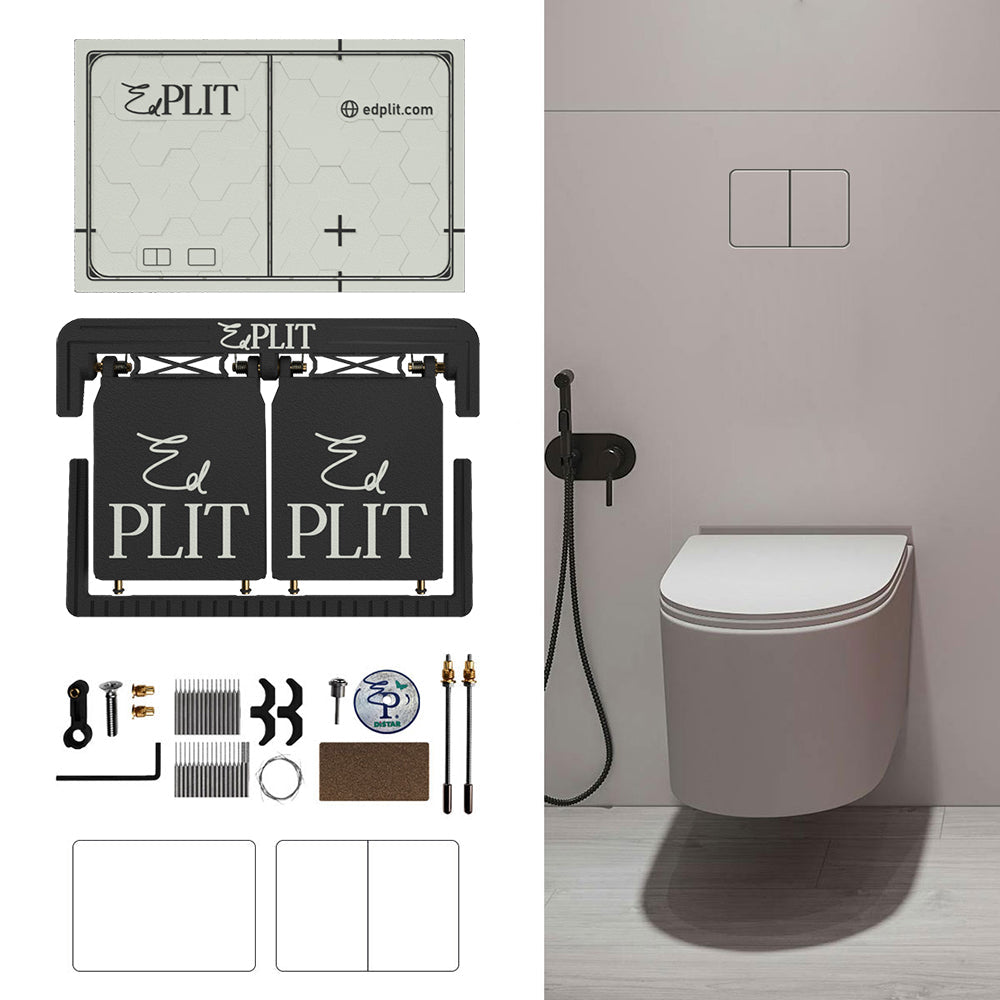

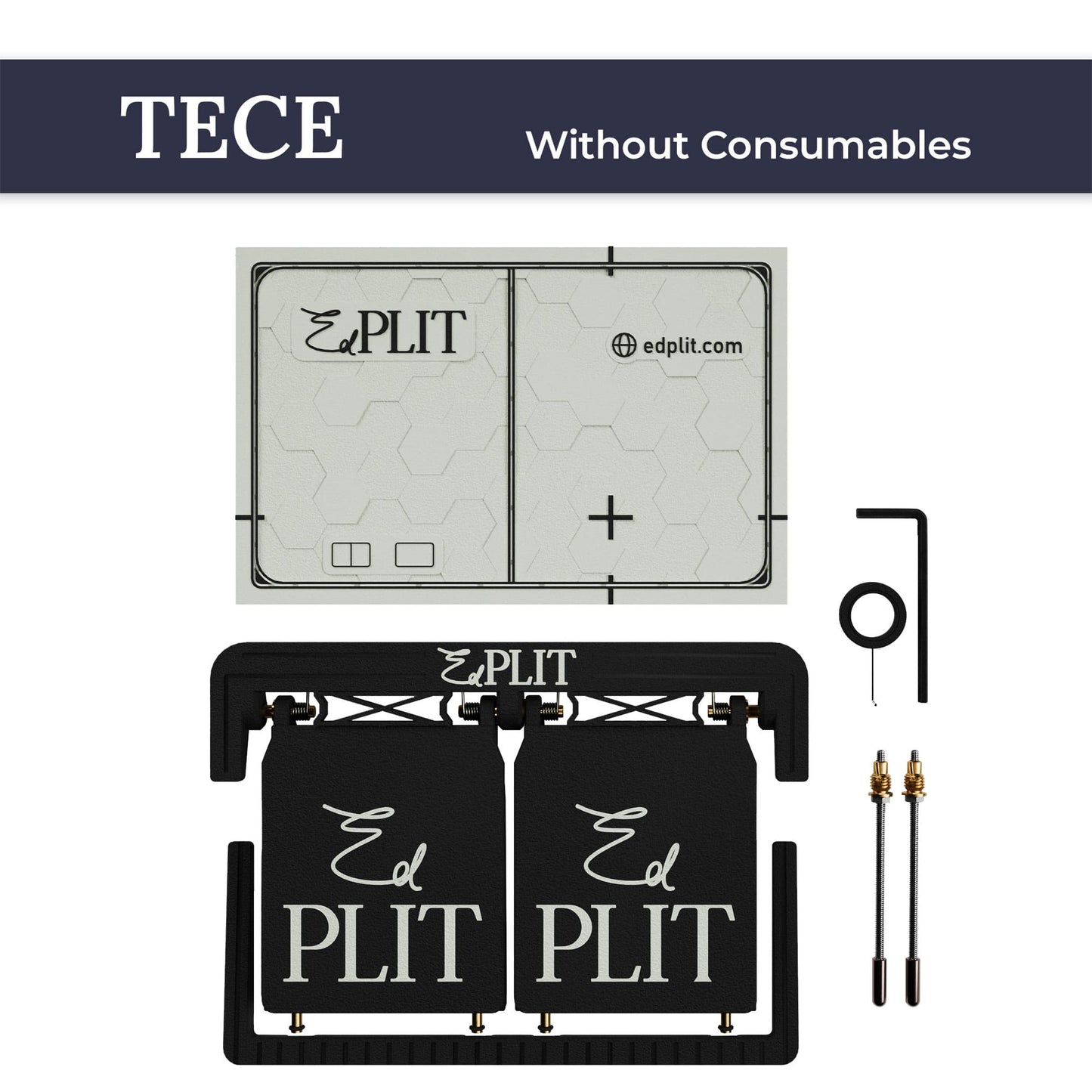

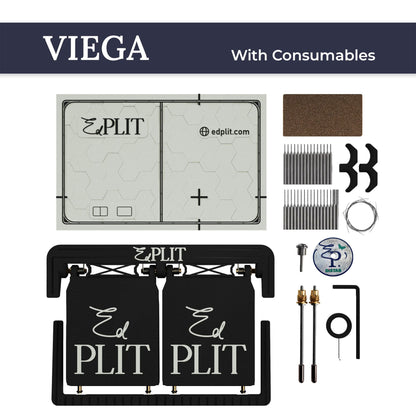

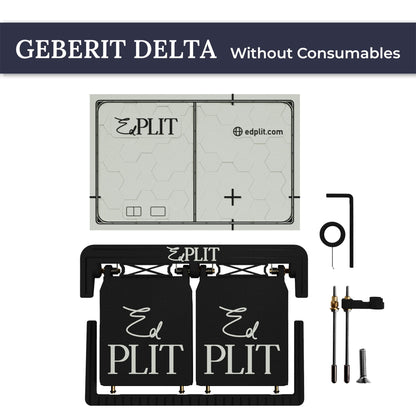

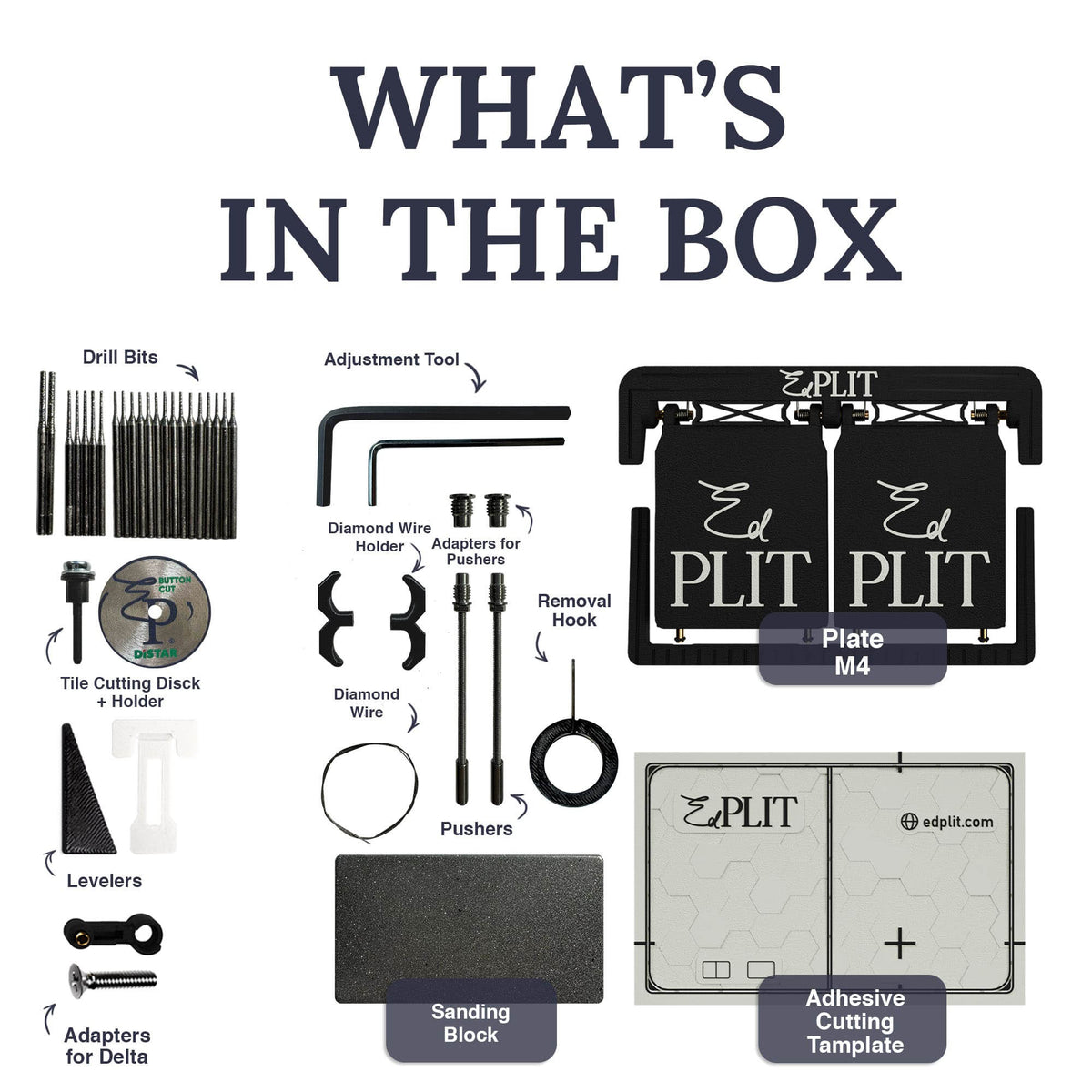

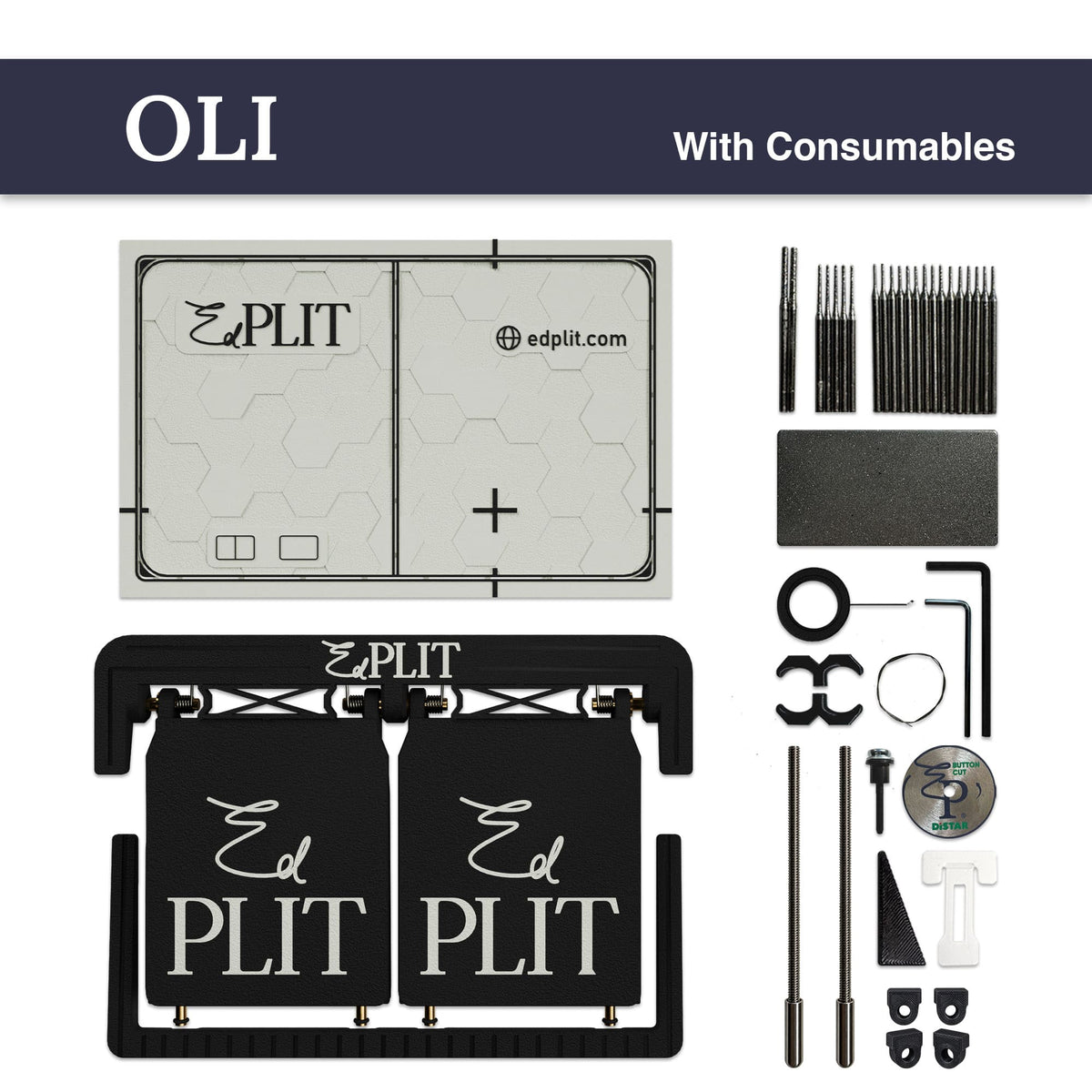

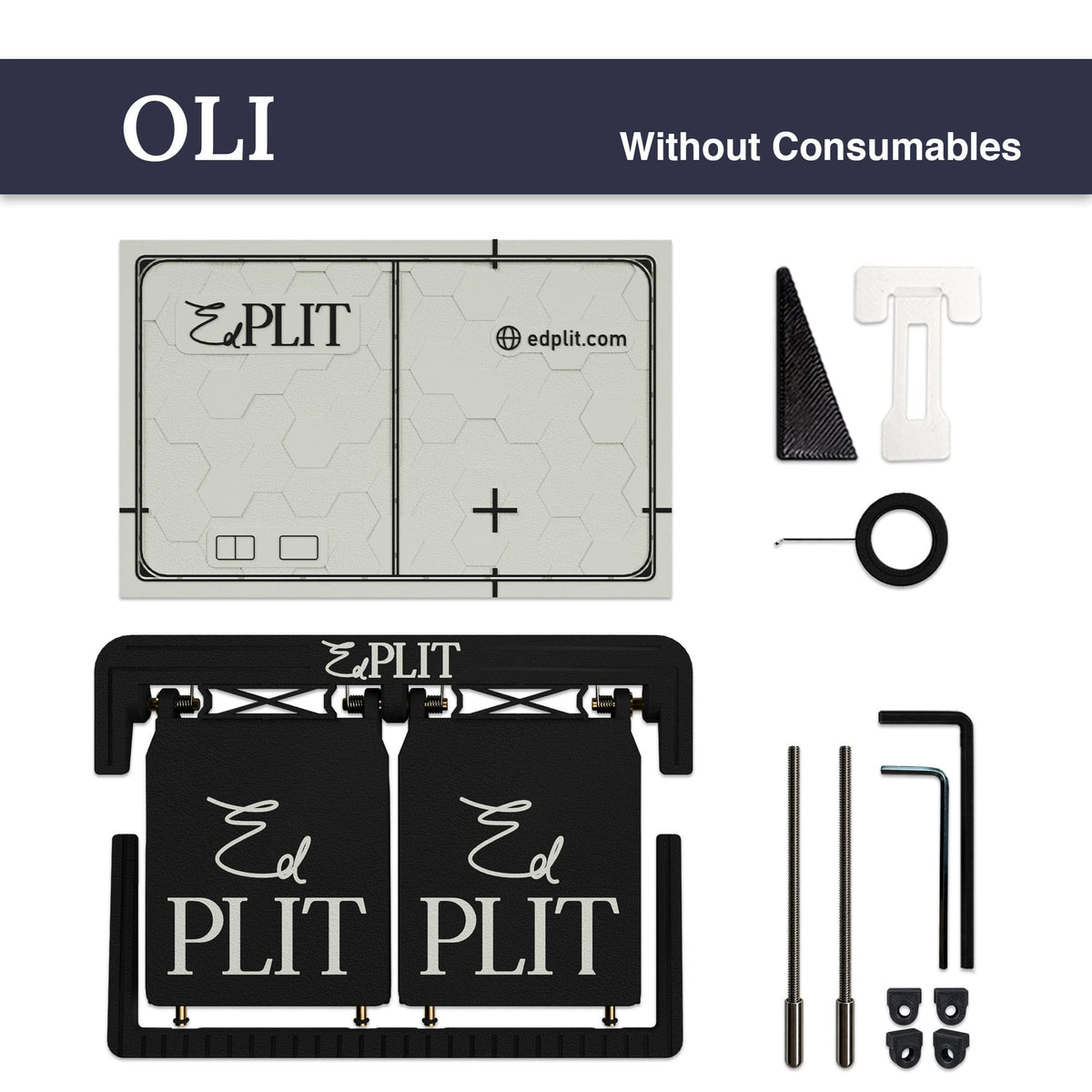

The kit includes a mounting frame, a tool for adjusting the position of the button, a hook for safely removing the tile insert and a precision adhesive cutting template

To create the tile insert, use the included adhesive template to mark the cut-out precisely. The insert will become the visible flush button, so accurate cutting is essential.

Recommended tools:

Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone. (If you plan to use waterjet cutting, please contact our manager and we will provide you with the cutting files.)
Glue: PU glue

The system is compatible with:

Ceramic tiles up to 12 mm
Porcelain tiles up to 12 mm

Edplit Hidden Flush Button system is fully adjustable to fit various project needs:

• Supports tile thickness up to 12 mm
• Frame and push rods can be adjusted without special tools
• Button position and sensitivity can be fine-tuned after tile installation
• Quick and simple calibration via the button opening

Please note that the button cannot be turned over and installed vertically.
